Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 38,000 BTU input for faster recovery
- 64-gallon first hour rating
- Factory-installed PEX polymer lined heat trap nipples
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-Friendly Non-CFC foam insulation
- Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33%
- PEX dip tube
- Factory-installed temperature & pressure (T&P) relief valve
- Vent kit included

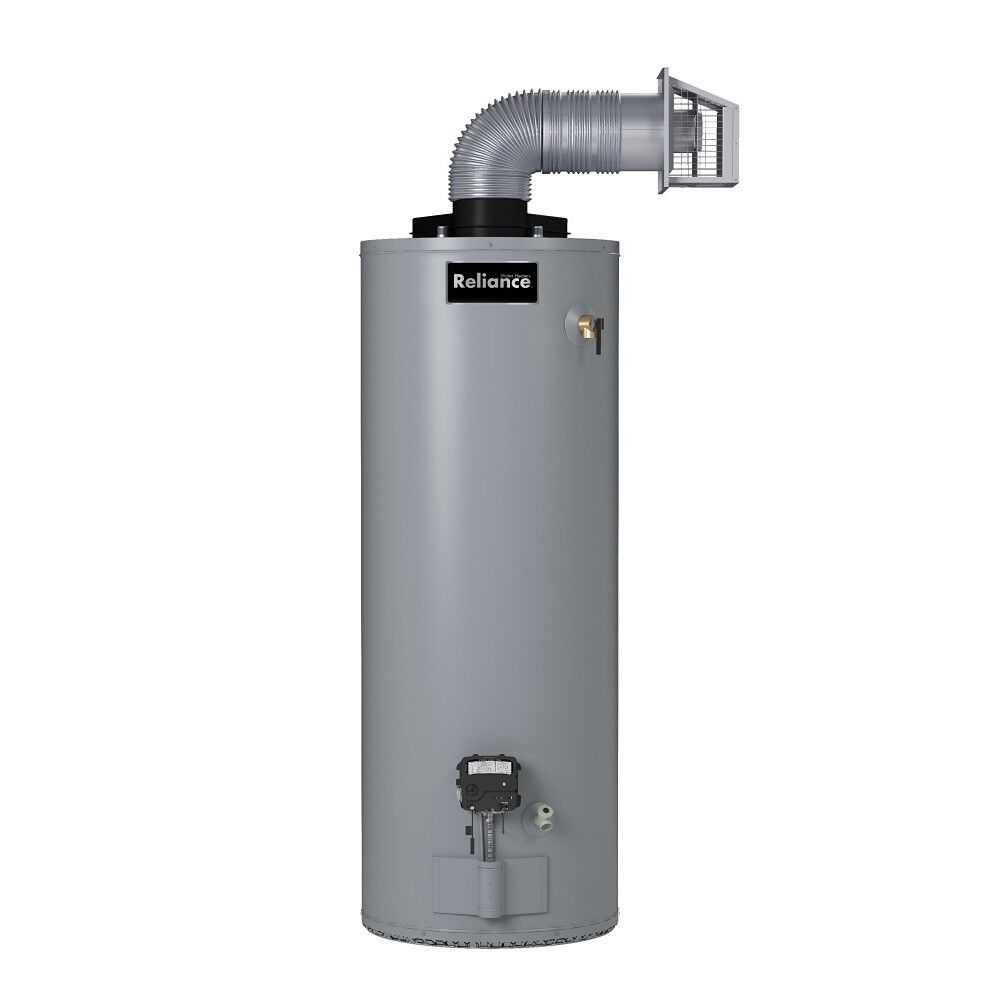

The 6-40-HBDS Short Low NOx 40-Gallon Direct Vent Gas Water Heater features a dual-pipe combustion system that draws in clean air from outside the home, eliminating any concerns about indoor ventilation. The environmentally friendly 38,000 BTU gas burner delivers a first-hour rating of 64 gallons.
An electronic gas valve provides precise temperature control for optimum hot water delivery and features an LED status indicator for diagnostics reporting. A push-button ignition simplifies startup.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
39 Gallons
UEF
0.6
Maximum BTUs
38,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
64 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
PROPANE
Height to T&P
42.50
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
62.5
Shipping Length
31.5
Shipping Width
23.5
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
49.5"
Diameter
22 in."
Width
22"
Shipping Weight
178 lbs
Vent Type
Direct Vent
Height to Gas Valve
14.5"
