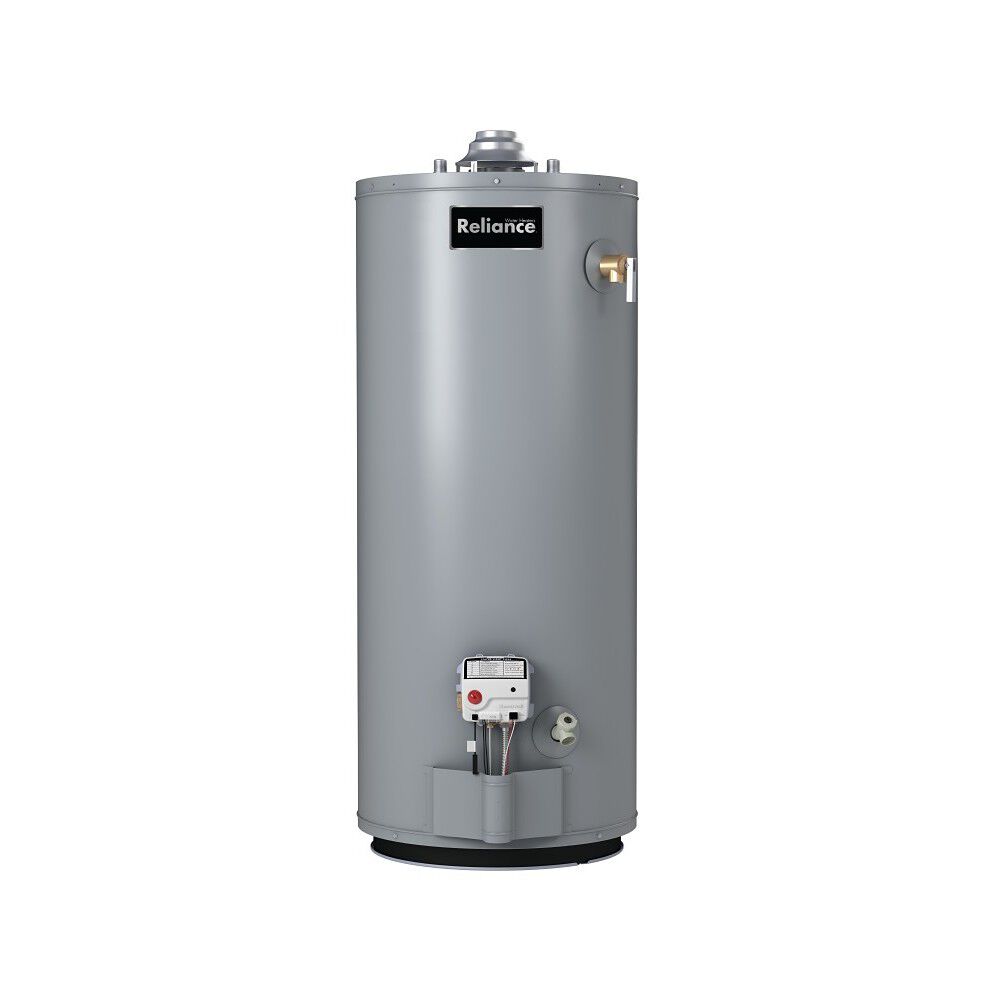

30 Gallon Short Blanketed Propane Water Heater - 6 Year Warranty

Model 6-30-PORBS 401
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
Blanket

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 35,500 BTU
  • 68-gallon first hour rating

    • 30 Gallon Short Blanketed Propane Water Heater - 6 Year Warranty
    Model 6-30-PORBS 401
    Find a Local Retailer
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    18.9 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.4 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    50 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $834/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 35,500 BTU
    • 68-gallon first hour rating
    • High-Recovery model provides more hot water for peak demand periods
    • Sidewall venting up to 125 feet
    • Vents using inexpensive schedule 40 PVC, CPVC, or ABS pipe
    • More powerful modular blower with 110/120 volt electrical system
    • Includes factory-installed 7-foot power cord
    • Advanced IntelliVent™ electronic gas control valve provides precise temperature control and operational status
    • Glass-lined tank with heavy duty anode rod protects against corrosion

      • The 6-30-PORBS 30-Gallon Short Blanketed Atmospheric Vent Liquid Propane Water Heater delivers ideal hot water for households with 3 people when sized appropriately. The 35,000 BTU gas burner delivers 68 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    28 Gallons
    UEF
    0.58
    Thermal Efficiency
    77%
    Maximum BTUs
    35,500
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    68 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to T&P
    39.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    49.94
    Shipping Length
    24.63
    Shipping Width
    19.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    46.25"
    Diameter
    18 in."
    Shipping Weight
    110 lbs
    Height to Gas Valve
    12.5"
