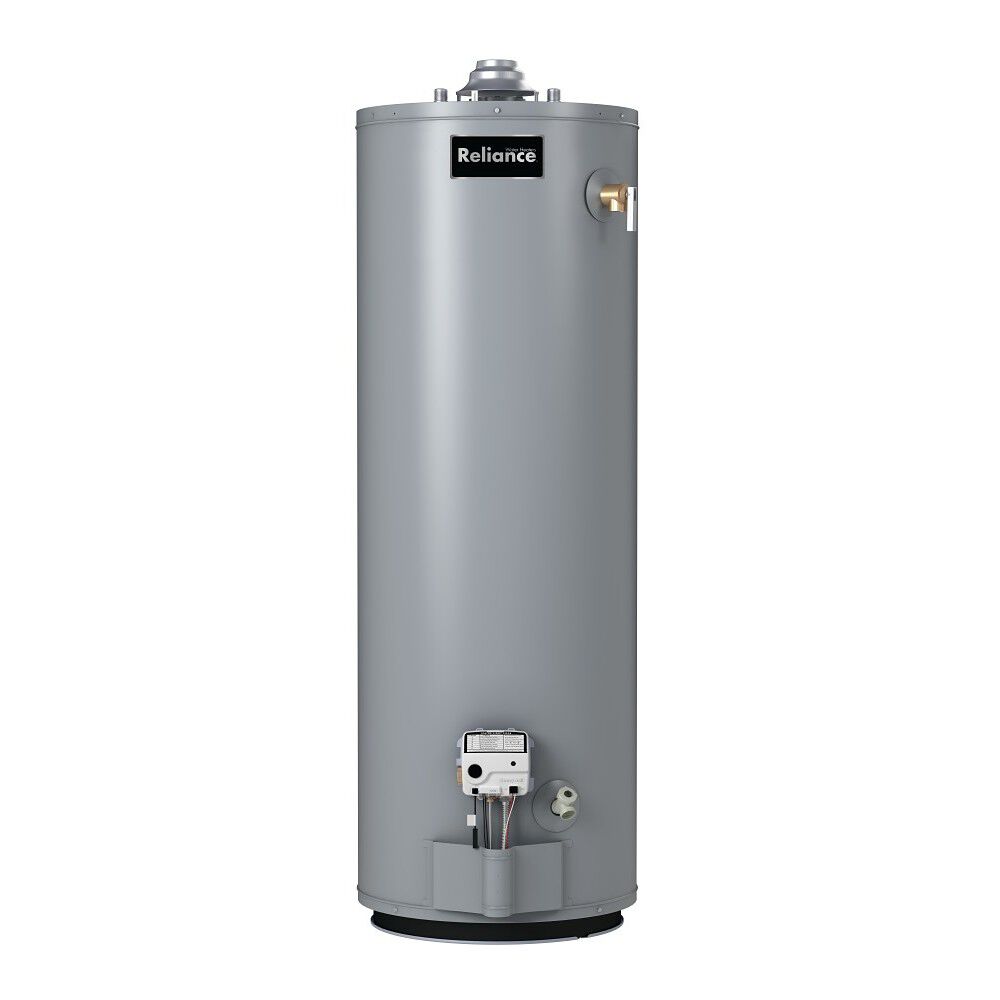

30-Gallon Atmospheric Vent Tall Natural Gas Water Heater - 6 Year Warranty

Model 6-30-NOCTR 400
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 32,000 BTU input for faster recovery
  • 62-gallon first hour rating

    • 30-Gallon Atmospheric Vent Tall Natural Gas Water Heater - 6 Year Warranty
    Model 6-30-NOCTR 400
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 32,000 BTU input for faster recovery
    • 62-gallon first hour rating
    • Electronic gas control incorporates an LED status indicator to monitor and report on system operational status
    • Electronic ignition
    • PEX dip tube
    • Glass-lined tank with anode rod protects against corrosion
    • Environmentally-Friendly Non-CFC foam insulation
    • Factory-installed PEX polymer lined heat trap nipples
    • Factory-installed temperature & pressure (T&P) relief valve

      • The 6-30-NOCTR 30-Gallon Tall Atmospheric Vent Natural Gas Water Heater delivers ideal hot water for households with 3 people when sized appropriately. The 32,000 BTU gas burner delivers 62 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    29 Gallons
    UEF
    0.6
    Maximum BTUs
    32,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    62 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Height to T&P
    51.50
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    60.38
    Shipping Length
    22
    Shipping Width
    19
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    56.5"
    Diameter
    18 in."
    Shipping Weight
    108 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    13"
