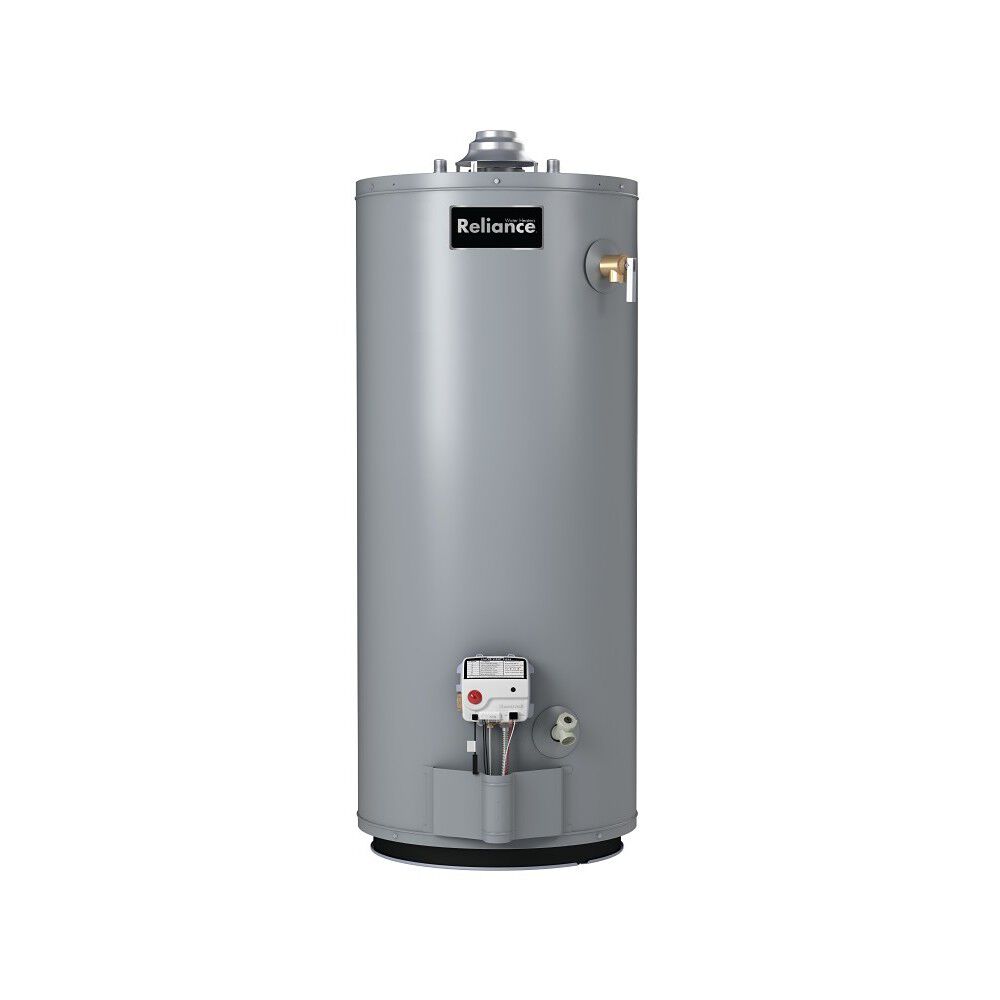

30-Gallon Atmospheric Vent Short Liquid Propane Gas Water Heater - 6 Year Warranty

Model 6-30-PORBSR 401
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 29,000 BTU input for faster recovery
  • 65-gallon first hour rating

    • 30-Gallon Atmospheric Vent Short Liquid Propane Gas Water Heater - 6 Year Warranty
    Model 6-30-PORBSR 401
    Find a Local Retailer
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 29,000 BTU input for faster recovery
    • 65-gallon first hour rating
    • High-Recovery model provides more hot water for peak demand periods
    • Sidewall venting up to 125 feet
    • Vents using inexpensive schedule 40 PVC, CPVC, or ABS pipe
    • More powerful modular blower with 110/120 volt electrical system
    • Includes factory-installed 7-foot power cord
    • Advanced IntelliVent™ electronic gas control valve provides precise temperature control and operational status
    • Glass-lined tank with heavy duty anode rod protects against corrosion

      • The 6-30-PORBSR 30-Gallon Short Blanketed Atmospheric Vent Liquid Propane Water Heater delivers ideal hot water for households with 3 people when sized appropriately. The 29,000 BTU gas burner delivers 65 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    29 Gallons
    UEF
    0.6
    Maximum BTUs
    29,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    65 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    PROPANE
    Height to T&P
    40.00
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    50.31
    Shipping Length
    24.5
    Shipping Width
    19
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    50.25"
    Diameter
    18 in."
    Shipping Weight
    114 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    13"
