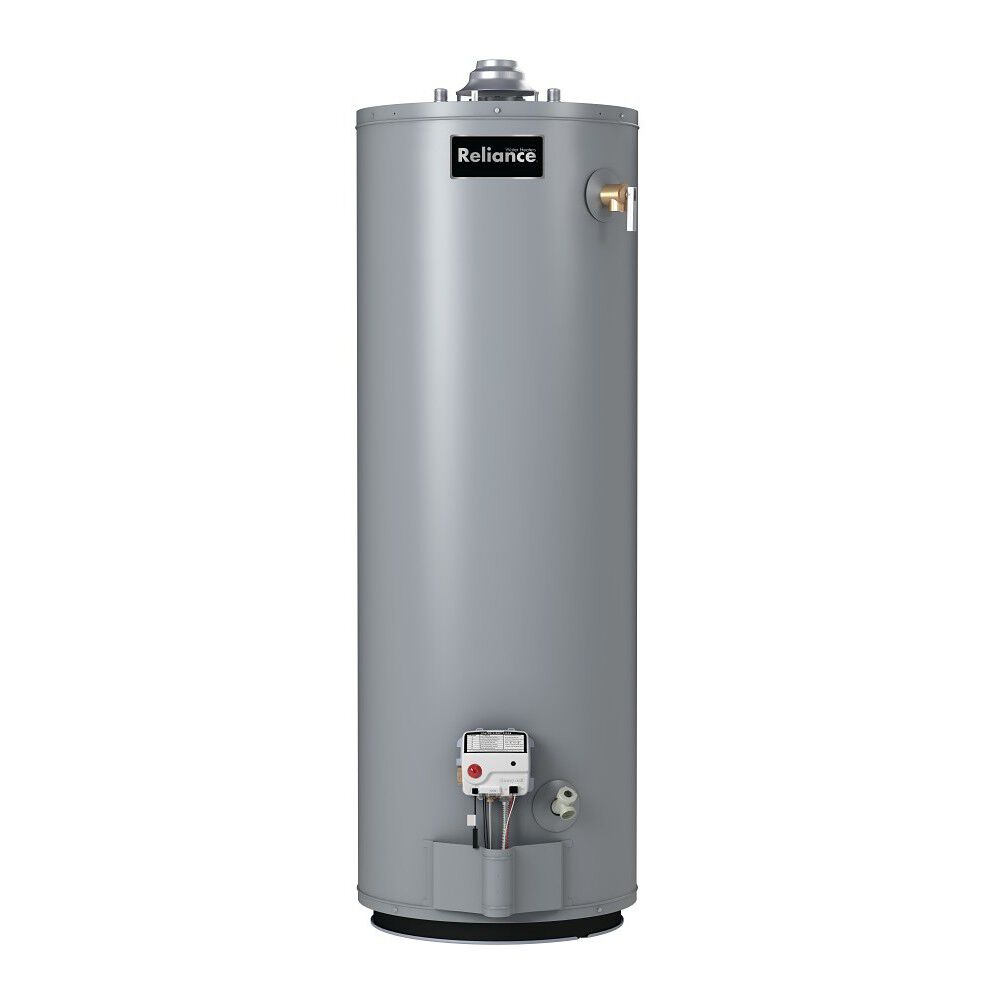

40-Gallon Tall Blanketed Propane Water Heater - 6 Year Warranty

Model 6-40-PBRBT 401
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 78-gallon first hour rating
  • Electronic gas control valve provides precise temperature control and operational status

    • 40-Gallon Tall Blanketed Propane Water Heater - 6 Year Warranty
    Model 6-40-PBRBT 401
    Find a Local Retailer
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    24.5 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    3.1 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    59 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $745/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 78-gallon first hour rating
    • Electronic gas control valve provides precise temperature control and operational status
    • Piezo igniter allows for easy one-hand pilot ignition without matches
    • Self-cleaning PEX dip tube helps reduce sediment build-up and maintain efficiency
    • Glass-lined tank with anode rod protects against corrosion
    • Shipped from factory with an insulation blanket
    • Environmentally-Friendly Non-CFC foam insulation
    • Factory-installed PEX polymer lined heat trap nipples
    • Factory-installed temperature & pressure (T&P) relief valve

      • The 6-40-PBRBT 40-Gallon Tall Blanketed Atmospheric Vent Liquid Propane Water Heater delivers ideal hot water for households with 4 people when sized appropriately. The 36,000 BTU gas burner delivers 78 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.65
    Maximum BTUs
    36,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    1"
    First Hour Rating
    78 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to T&P
    51.75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    61.81
    Shipping Length
    24.13
    Shipping Width
    21.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    58.25"
    Diameter
    18 in."
    Shipping Weight
    150 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    11"
