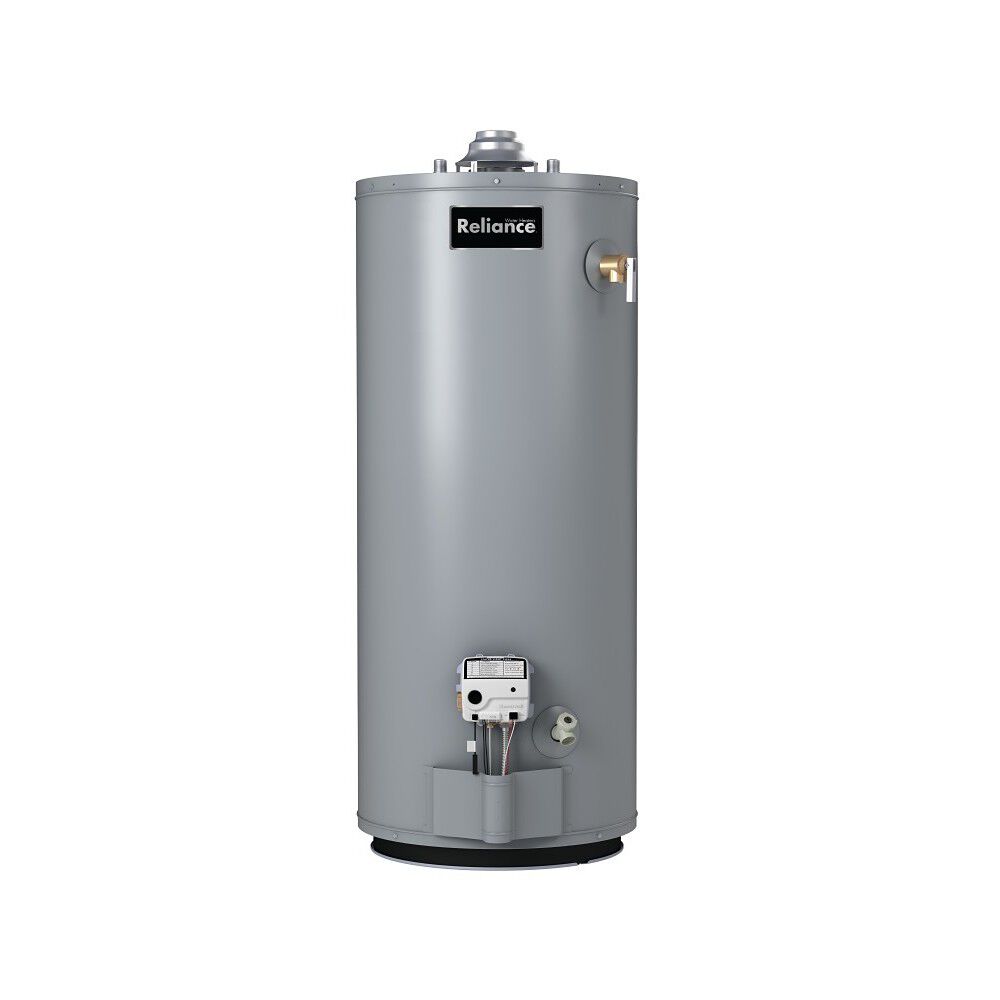

50-Gallon Short Atmospheric Vent Natural Gas Water Heater - 6 Year Warranty - 400

Model 6-50-NBCS 400
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Fuel Source
Advanced Options
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 40,000 BTU input for faster recovery
  • 81-gallon first hour rating

    •
    50-Gallon Short Atmospheric Vent Natural Gas Water Heater - 6 Year Warranty - 400
    Model 6-50-NBCS 400
    Find a Local Retailer
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 40,000 BTU input for faster recovery
    • 81-gallon first hour rating
    • Electronic gas control valve provides precise temperature control and operational status
    • Piezo igniter allows for easy one-hand pilot ignition without matches
    • Self-cleaning PEX dip tube helps reduce sediment build-up and
    • Glass-lined tank with anode rod protects against corrosion
    • Environmentally-Friendly Non-CFC foam insulation
    • Factory-installed PEX polymer lined heat trap nipples
    • Factory-installed temperature & pressure (T&P) relief valve

      • The 6-50-NBCS 50-Gallon Short Atmospheric Vent Natural Gas Water Heater delivers ideal hot water for households with 5 people when sized appropriately. The 40,000 BTU gas burner delivers 81 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    50 Gallons
    UEF
    0.62
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    81 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to T&P
    43.75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    53.06
    Shipping Length
    28.13
    Shipping Width
    25.13
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    55.75"
    Diameter
    24 in."
    Shipping Weight
    175 lbs
    Vent Type
    Atmospheric Vent
    Height to Gas Valve
    14.5"
