120V Plug-In 50-Gallon Smart Hybrid Electric Heat Pump Water Heater - 10 Year Warranty

Model 10-50-DHPTV 200
Capacity (Gallons)

  • ENERGY STAR® certified with a UEF of 3.0
  • 10-year limited tank & parts warranty, 1-year labor warranty
  • Easy Installation & Replacement—Built-in duct adapters and top water connections to easily replace gas water heaters, zero clearance required
  • 120V Plug-In 50-Gallon Smart Hybrid Electric Heat Pump Water Heater - 10 Year Warranty
    Model 10-50-DHPTV 200
    Product Details
    • ENERGY STAR® certified with a UEF of 3.0
    • 10-year limited tank & parts warranty, 1-year labor warranty
    • Easy Installation & Replacement—Built-in duct adapters and top water connections to easily replace gas water heaters, zero clearance required
    • Fits in Tight Spaces—Zero clearance required on sides and back
    • Smart Leak Protection Technology—Detects, alerts, notifies, and protects your water heater in the event of a leak
    • iCOMM™ WiFi Connectivity—Get notifications and manage your water heater from your smartphone
    • Whisper-Quiet—Only 45 dBA while operating
    • CSA-certified and ASME-rated temperature & pressure relief valve for safety

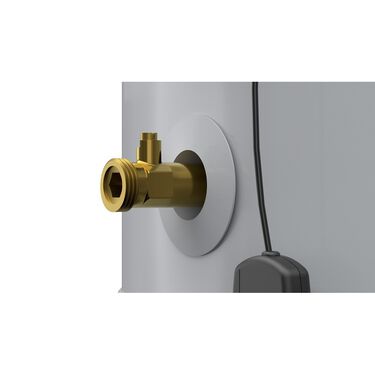

    • Smart Anti-Leak Technology—Automatically closes the valve on the incoming cold water inlet when a leak is detected to block the cold water supply and reduce property damage
    • Long-lasting copper upper and lower backup heating elements

    • The most energy efficient way to heat water just got better—now with the ability to plug into a standard wall outlet for easy installation. Save money on utility bills* and enjoy peace of mind with built-in leak detection and an automatic water shut off valve.

      Choose from three operating modes for optimal performance based on your household needs:

      Heat Pump—Utilizes the heat pump for all water heating for the most energy efficient operation**
      Electric—Standard electric water heater operation – utilizes heating elements for all water heating
      Vacation—Maintains tank temperature at 60°F during vacation or extended absence for up to 99 days to reduce operating costs and provide freeze protection

      *Comparing 66-gallon heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates. Savings may vary.
      **Automatically reverts to heating element only operation if entering air temperature is above 120°F, below 37°F or tank water temperature is below 55°F.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    3
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    3/4-in"
    First Hour Rating
    52 Gallons
    ASME Certified
    No
    NEEA Certified
    Yes
    Amperes
    9.38
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    39.75
    Installation Type
    INDOOR
    Max Wattage
    900
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    67.75
    Shipping Length
    27.13
    Shipping Width
    23.5
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    66"
    Diameter
    22 in."
    Width
    22"
    Shipping Weight
    196 lbs
