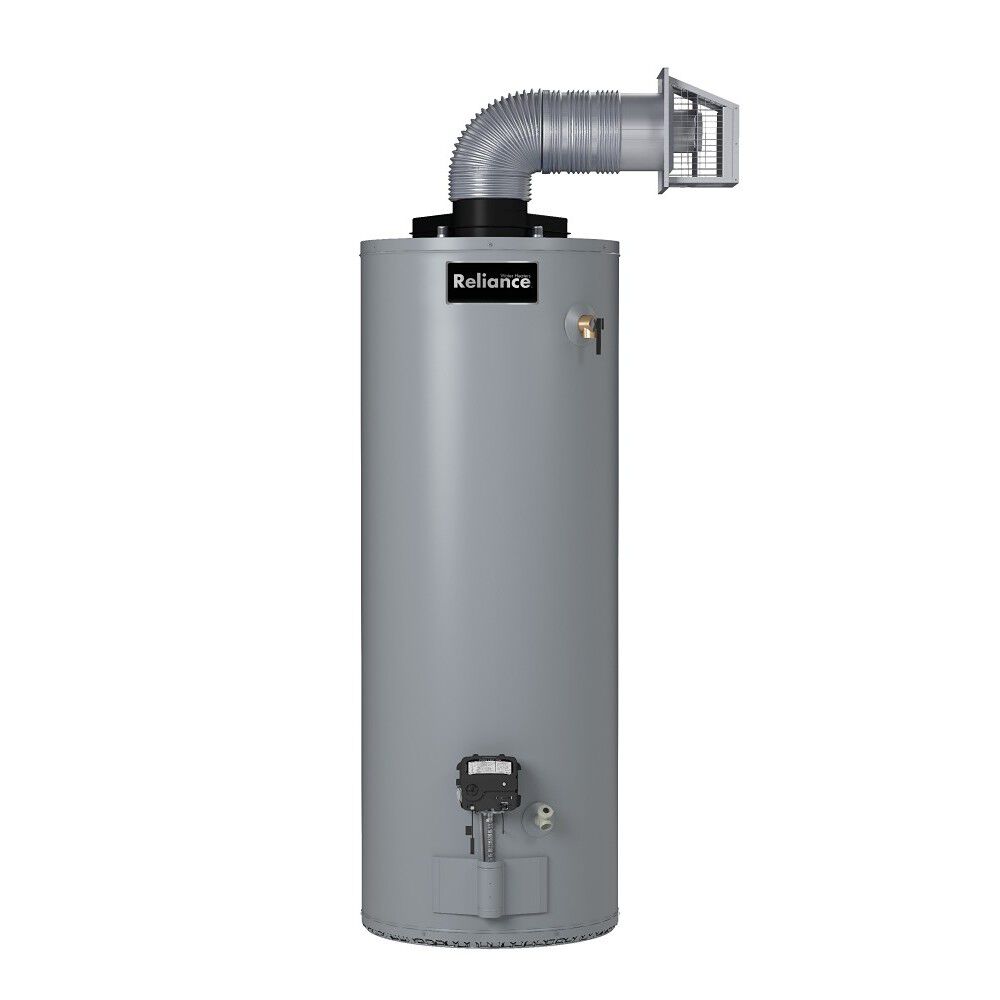

50-Gallon Direct Vent Natural Gas Water Heater - 6 Year Warranty

Model 6-50-YBDS 300
Capacity (Gallons)
Fuel Source
Height Classification
Advanced Options
First Hour Rating
Side Loop
Maximum BTU's

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 40,000 BTU input for faster recovery
  • 77-gallon first hour rating
  • 50-Gallon Direct Vent Natural Gas Water Heater - 6 Year Warranty
    Model 6-50-YBDS 300
    What to Expect from this Model
    modal-clock
    32.4 minutes
    single shower length
    modal-frame
    4.1 showers
    back-to-back
    modal-frame
    2.9 showers
    at the same time
    modal-tank-capacity
    77 gallons
    max tub size
    modal-cost
    $269/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 40,000 BTU input for faster recovery
    • 77-gallon first hour rating
    • Factory-installed PEX polymer lined heat trap nipples
    • Glass-lined tank with anode rod protects against corrosion
    • Environmentally-Friendly Non-CFC foam insulation
    • Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33%
    • PEX dip tube
    • Factory-installed temperature & pressure (T&P) relief valve
    • Vent kit included

    • The 6-50-YBDS Short Low NOx 50-Gallon Direct Vent Gas Water Heater features a dual-pipe combustion system that draws in clean air from outside the home, eliminating any concerns about indoor ventilation. The environmentally friendly 40,000 BTU gas burner delivers a first-hour rating of 77 gallons.

      An electronic gas valve provides precise temperature control for optimum hot water delivery and features an LED status indicator for diagnostics reporting. A push-button ignition simplifies startup.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.66
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    77 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to T&P
    51.75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71.5
    Shipping Length
    31.5
    Shipping Width
    23.5
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    60"
    Diameter
    22 in."
    Shipping Weight
    200 lbs
    Vent Type
    Direct Vent
