Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 36,000 BTU input for faster recovery
- 65-gallon first hour rating
- Unique design captures escaping hot combustion gases to retain heated water longer
- Advanced electronic gas control valve assures tighter temperature control
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve

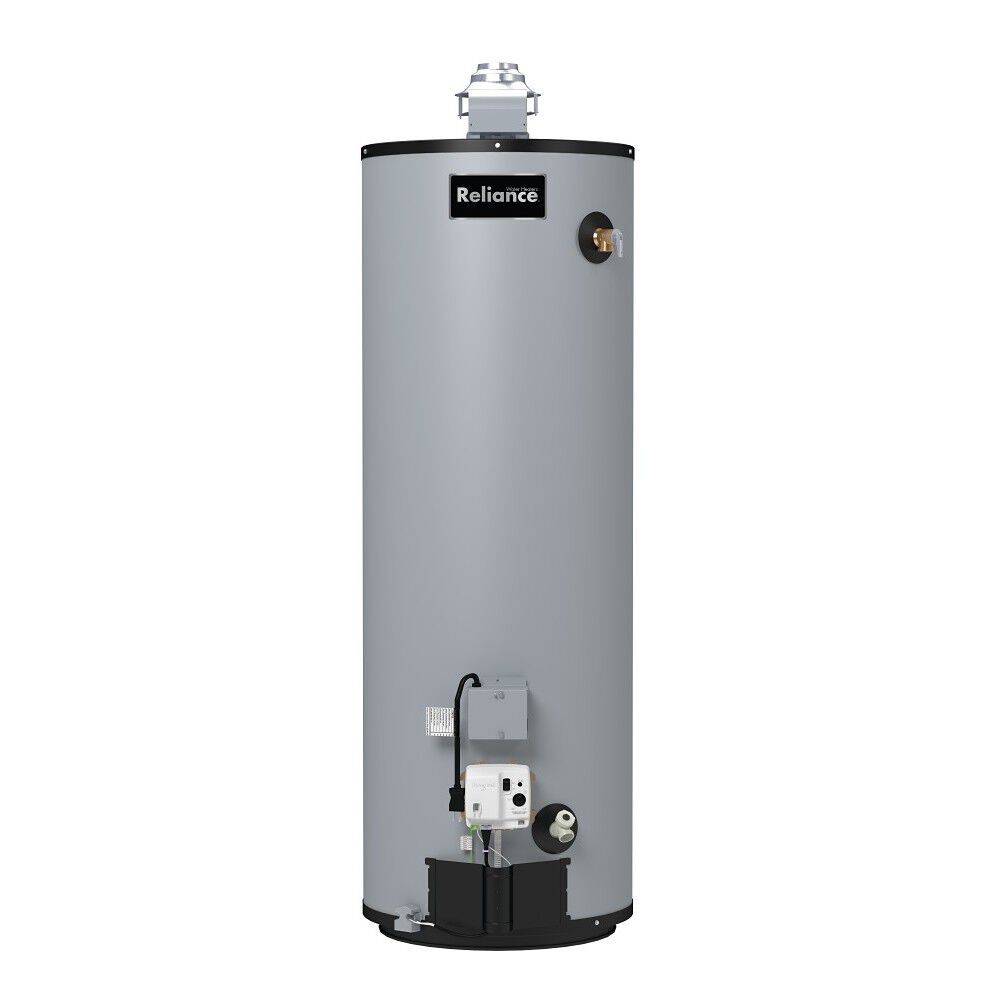

The 6-40-LBFS 40-Gallon Short Energy Efficient Liquid Propane Water Heater features an automatic flue damper to increase efficiency as it automatically opens and closes to reduce heat loss in the standby mode. The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics.
An automatic pilot relight system that shuts off the pilot during stand-by modes to reduce gas consumption and eliminates nuisance pilot outage issues. This models features a 6-year tank and parts limited warranty and a 1-year labor limited warranty.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.66
Maximum BTUs
36,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
65 Gallons
ASME Certified
No
LEED Rating
1.00
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
PROPANE
Height to T&P
41.25
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
50.75
Shipping Length
26.1
Shipping Width
23.25
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
47.75"
Diameter
22 in."
Shipping Weight
146 lbs
Vent Type
Atmospheric Vent
Height to Gas Valve
11"
