Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Lightweight, double drawn steel contruction
- Heavy Duty Parabolic diaphragm
- Corrosion resistant polymer base
- Fused water chamber with powder coated interior
- NSF 612G/372 galvanized lead-free connection
- Projection welded air valve.
- 5-year limited warranty

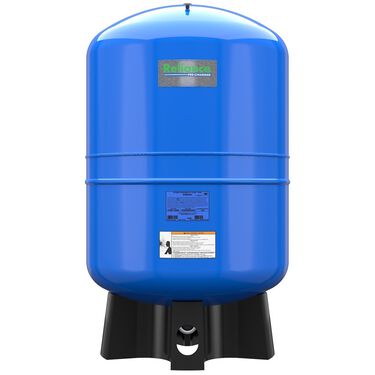

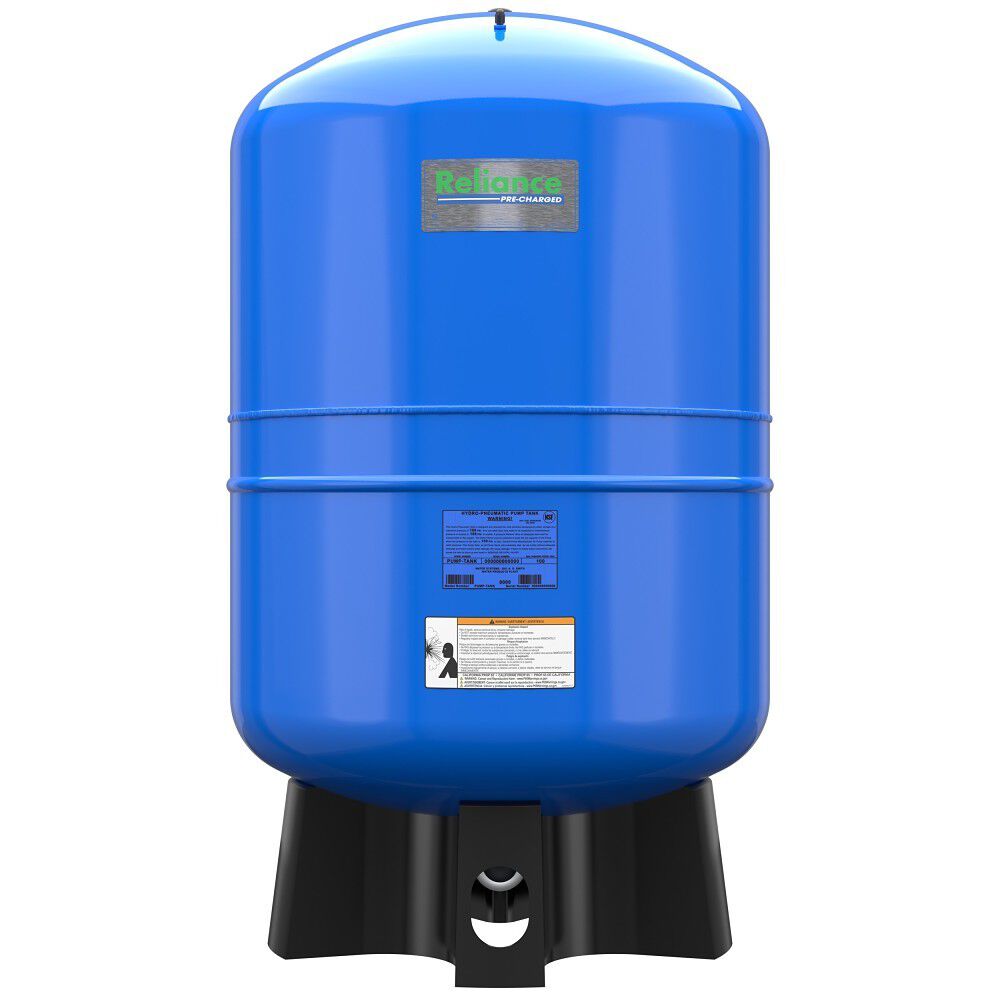

A Reliance Pump Tank is essential for any home which uses a pump to draw water from a well. It ensures your pump will run for at least one minute each time it cycles as required by pump manufacturers. It stores a supplemental water supply to reduce the number of cycles throughout the day and to help prolong pump life. A pump tank helps maintain water pressure within your system for proper operation of your dishwasher and washing machine and robust flow for showering and bathing.
Specifications
Tech Specs
Nominal Gallon Capacity
52 Gallons
Rated Storage Volume
52 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
BOTTOM
Water Connection Size
1.25"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
RESIDENTIAL
Shipping Height
40
Shipping Length
23.625
Shipping Width
23.625
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
38.625"
Width
23.375"
Shipping Weight
77 lbs
Product Literature
Marketing Literature
