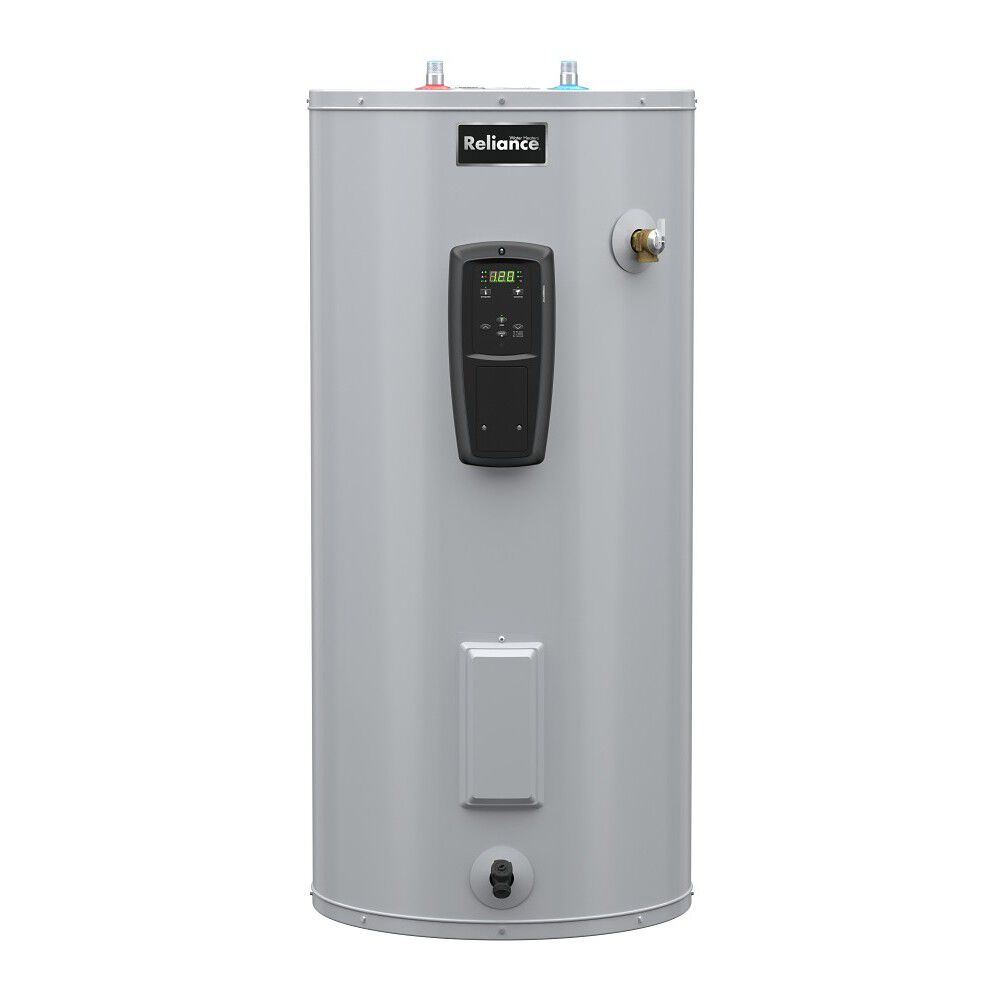

Grid-Capable 40-Gallon Short Smart Electric Water Heater

Model 6-40-DURS 100
Capacity (Gallons)
First Hour Rating
Limited Tank Warranty
UEF
Height Classification

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
  • Dual 4,500-watt heating elements deliver a first hour rating of 53 gallons at a Uniform Energy Factor of 0.92

    • Grid-Capable 40-Gallon Short Smart Electric Water Heater
    Model 6-40-DURS 100
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
    • Dual 4,500-watt heating elements deliver a first hour rating of 53 gallons at a Uniform Energy Factor of 0.92
    • Electronic User Interface—Set to Standard or Vacation modes to maximize efficiency
    • Displays diagnostic feedback information
    • Features Element Dry-Fire protection
    • Self Cleaning Dip Tube—Helps reduce lime and sediment buildup and maximizes hot water output

      • Take advantage of advanced utility savings with the 6-40-DURS 40-Gallon Grid-Capable Water Heater. The built-in CTA-2045 EcoPortCM enables homeowners to connect to local utility Smart Grid Programs where available (requires module from local utility). Meets state of Washington and Oregon requirements.

      This model features dual 4,500-watt commercial-grade heating elements to deliver reliable and efficient hot water. Reduce heat loss and save energy with environmentally-friendly insulation and factory-installed heat trap nipples.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    53 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Height to T&P
    40.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.38
    Shipping Length
    23.69
    Shipping Width
    21.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    49.75"
    Diameter
    20.5 in."
    Shipping Weight
    95 lbs
