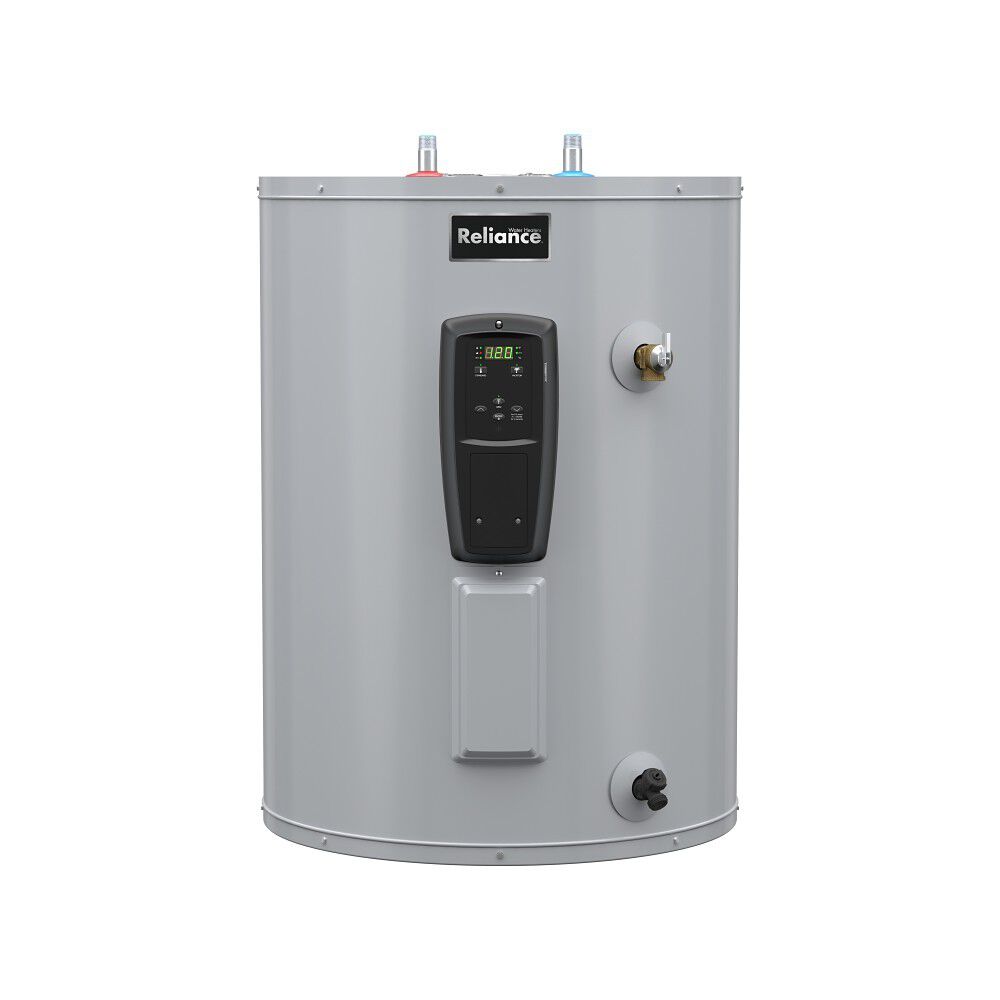

Grid-Capable 50-Gallon Blanketed Lowboy Smart Electric Water Heater

Model 6-50-DURLB 100
Capacity (Gallons)
First Hour Rating
Limited Tank Warranty
UEF
Height Classification

  • 6-Year Limited Tank/Parts Warranty, 1-Year Limited Labor Warranty
  • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
  • Dual 4,500-watt heating elements deliver a first hour rating of 55 gallons and a Uniform Energy Factor of 0.92
  • Grid-Capable 50-Gallon Blanketed Lowboy Smart Electric Water Heater
    Model 6-50-DURLB 100
    Product Details
    • 6-Year Limited Tank/Parts Warranty, 1-Year Limited Labor Warranty
    • Grid Capable—Built-In EcoPortCM facilitates participation in Utility Demand Response program (module needed from local utility)
    • Dual 4,500-watt heating elements deliver a first hour rating of 55 gallons and a Uniform Energy Factor of 0.92
    • Electronic User Interface—Set to Standard or Vacation modes to maximize efficiency
    • Displays diagnostic feedback information
    • Features Element Dry-Fire protection
    • Self Cleaning Dip Tube—Helps reduce lime and sediment buildup and maximizes hot water output

    • Take advantage of advanced utility savings with the 6-50-DURLB 50-Gallon Grid-Capable Water Heater. The built-in CTA-2045 EcoPortCM enables homeowners to connect to local utility Smart Grid Programs where available (requires module from local utility). Meets state of Washington and Oregon requirements.

      This model features dual 4,500-watt commercial-grade heating elements to deliver reliable and efficient hot water. Reduce heat loss and save energy with environmentally-friendly insulation and factory-installed heat trap nipples.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    48 Gallons
    Rated Storage Volume
    44 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    First Hour Rating
    55 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Digital Display
    Yes
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    37.75
    Shipping Length
    33
    Shipping Width
    27.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26.5 in."
    Shipping Weight
    154 lbs
