Energy Star
ResidentialNAECA4 Compliant

50-Gallon Electric Heat Pump Water Heater - 6 Year Warranty

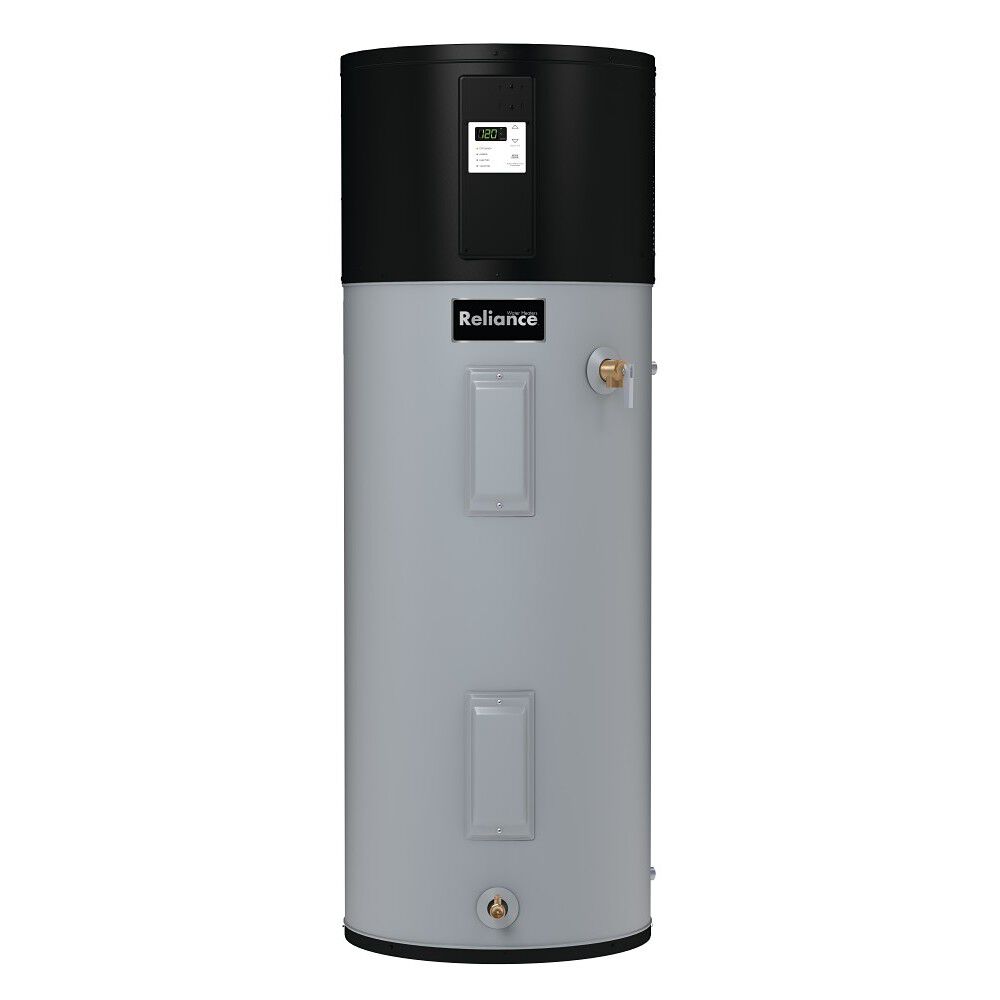

Model 6-50-DHPHT 130
Capacity (Gallons)
Limited Tank Warranty

  • ENERGY STAR® certified with a UEF of 3.60
  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Save up to $305 per year on utility bills*

    • 50-Gallon Electric Heat Pump Water Heater - 6 Year Warranty
    Model 6-50-DHPHT 130
    Find a Local Retailer
    Find a Local Retailer
    Product Details
    • ENERGY STAR® certified with a UEF of 3.60
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Save up to $305 per year on utility bills*
    • Guest Mode provides maximum hot water for up to seven days
    • Smart anode adapts to local water conditions, protecting against tank corrosion
    • Top water connections and built-in duct adapters for ease of installation, zero clearance required
    • Super quiet operation—45 dBA, the quietest in the industry
    • Long-lasting 4500-watt upper and lower backup copper heating elements
    • 55-gallon First Hour Recovery rating for maximum hot water delivery

      • This 50-Gallon Electric Heat Pump Water Heater uses an innovative design that extracts heat in even the most extreme climates. It is ENERGY STAR® certified and qualifies for many state and local utility rebates. Save up to $305 on annual utility costs as compared to a conventional electric model*

      Choose from four operating modes for optimal performance based on your household needs:

      Heat Pump – Maximum energy efficiency
      Hybrid – Balances hot water delivery with energy-saving performance
      Electric – Uses only the electric heating elements
      Vacation – Reduce energy use while you are away

      *Comparing 66-gallon heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    3.35
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    66 Gallons
    ASME Certified
    No
    NEEA Certified
    Yes
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    40.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    65
    Shipping Length
    28.06
    Shipping Width
    26.31
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Height
    63"
    Diameter
    22 in."
    Width
    22"
    Shipping Weight
    196 lbs
    Maintenance & Troubleshooting Videos
    Maintenance

    Hybrid Electric Heat Pump Condensate Pump Installation

    Hybrid Electric Heat Pump Controls

    Hybrid Electric Heat Pump Duct Kit Installation

    Hybrid Electric Heat Pump Replacing an Element

    Troubleshooting

    Hybrid Electric Heat Pump Error Code E10-E60

    Hybrid Electric Heat Pump Error Code ECC

    Hybrid Electric Heat Pump Error Code ECL

    Hybrid Electric Heat Pump Error Code EdH

    Hybrid Electric Heat Pump Error Code Edr

    Hybrid Electric Heat Pump Error Code ELC

    Hybrid Electric Heat Pump Error Code EoF

    Hybrid Electric Heat Pump Error Code EUC

    Hybrid Electric Heat Pump Error Code HP0

    Hybrid Electric Heat Pump Error Code ICE

    Hybrid Electric Heat Pump Error Code PS

    Marketing Videos
    Hybrid Electric Heat Pump Application and Installation
    Hybrid Electric Heat Pump Commercial
    Hybrid Electric Heat Pump Features and Benefits
    Hybrid Electric Heat Pump How it Works
    Hybrid Electric Heat Pump Value Proposition
