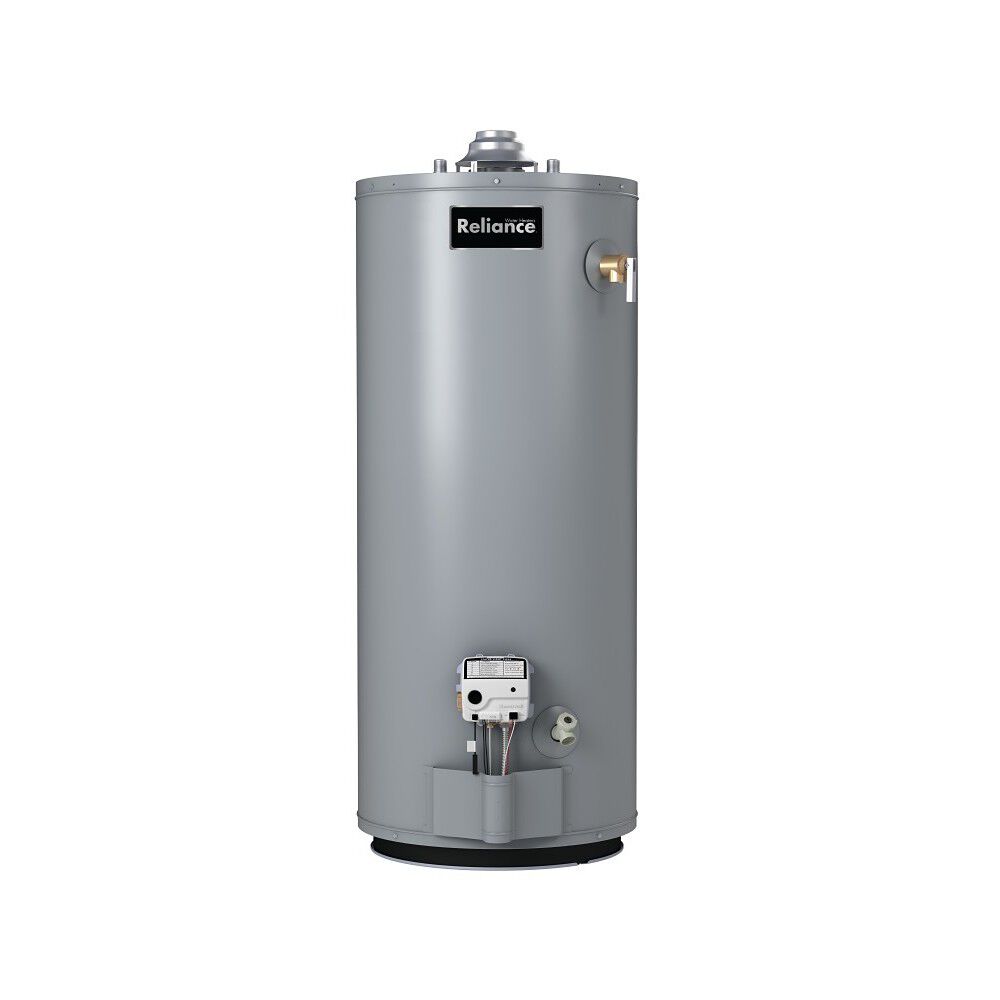

100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater - 6 Year Warranty

Model 6-100-XRRT 400
Fuel Source
Capacity (Gallons)
Limited Tank Warranty
Side Loop

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • 75,100 BTU input for faster recovery
  • 170-gallon first hour rating

    •
    100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater - 6 Year Warranty
    Model 6-100-XRRT 400
    Buy at
    Available at Ace for Only $3,499.99
    Find a Local Retailer
    Buy at
    Available at Ace for Only $3,499.99
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    95.9 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    12 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    4.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    133 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $306/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • 75,100 BTU input for faster recovery
    • 170-gallon first hour rating
    • High-Recovery model provides more hot water for peak demand periods
    • Electronic gas control valve provides precise temperature control and operational status
    • Piezo igniter allows for easy one-hand pilot ignition without matches
    • Glass-lined tank with anode rod protects against corrosion
    • Environmentally-Friendly Non-CFC foam insulation
    • 7,700 ft altitude rating
    • Factory-installed PEX polymer lined heat trap nipples & (T&P) relief valve

      • The 6-100-XRRT 100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater delivers ideal hot water for households with 5 people when sized appropriately. The 75,100 BTU gas burner delivers 170 gallons in the first hour.

      An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    98 Gallons
    Rated Storage Volume
    95 Gallons
    UEF
    0.58
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.25"
    Emissions
    Low NOx
    First Hour Rating
    170 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    NATURAL
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    68.5
    Shipping Length
    33.5
    Shipping Width
    30.5
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    65"
    Diameter
    27.75 in."
    Shipping Weight
    340 lbs
    Vent Type
    Atmospheric Vent
