Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 75,100 BTU input for faster recovery
- 125-gallon first hour rating
- Ultra Low NOx
- High-Recovery model provides more hot water for peak demand periods
- Flammable vapor ignition-resistant design
- Flexible 3” or 4” venting option
- 7,700 ft altitude rating
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve

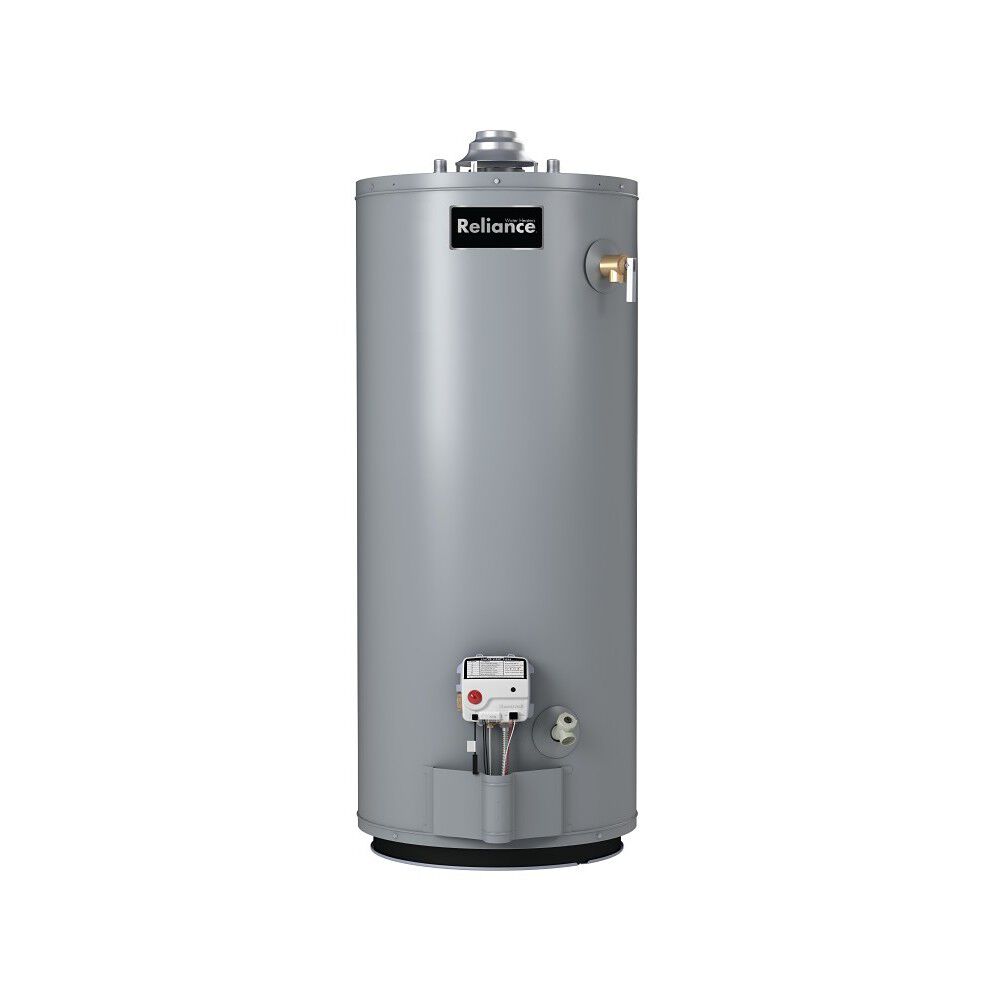

The 6-75-CRRS 75-Gallon High Recovery Atmospheric Vent Liquid Propane Water Heater delivers ideal hot water for households with 5 people when sized appropriately. The 75,100 BTU gas burner delivers 125 gallons in the first hour.
An electronic gas valve provides precise temperature control for optimum hot water delivery. The self-diagnostic electronic gas control monitors and reports on system operational status via an LED status indicator.
Specifications
Tech Specs
Nominal Gallon Capacity
74 Gallons
Rated Storage Volume
71 Gallons
UEF
0.6
Thermal Efficiency
80%
Maximum BTUs
75,100
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
1"
Emissions
Low NOx
First Hour Rating
125 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
PROPANE
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
60.38
Shipping Length
33
Shipping Width
29.25
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
57"
Diameter
26.39 in."
Shipping Weight
270 lbs
Vent Type
Atmospheric Vent
