Product Details
- Pre-pressurized diaphragm operation
- Maximum working pressure 100 psi.
- Lightweight, double drawn steel contruction
- Heavy Duty Parabolic diaphragm
- Corrosion resistant polymer base
- Fused water chamber with powder coated interior
- Projection welded air valve.

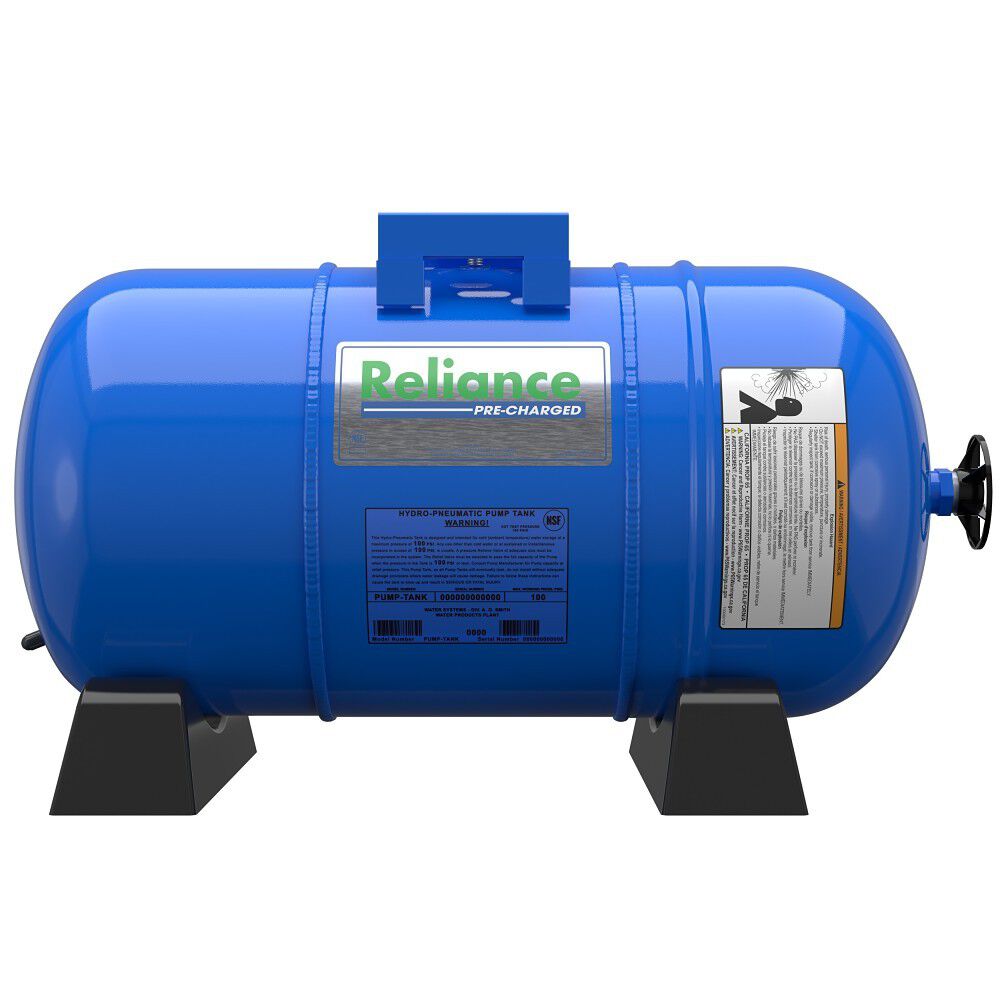

A Reliance Pump Tank is a must for any home that uses a pump to draw water from a well. It ensures that your pump will run for at least one minute each time it cycles, as required by pump manufacturers. It stores a supplemental water supply between pump cycles, to reduce the number of cycles throughout the day, and helps prolong pump life. It helps maintain water pressure within your system, ensuring proper operation of your dishwasher and washing machine, and robust flow for showering and bathing.
Specifications
Tech Specs
Nominal Gallon Capacity
7 Gallons
Rated Storage Volume
7.3 Gallons
Power Source
DIAPHRAGM
Limited Tank Warranty
5 Years
Limited Parts Warranty
0 Years
Water Connection Location
SIDE
Water Connection Size
3/4-in"
ASME Certified
No
Destination Country
US
Installation Type
BOTH
Application
RESIDENTIAL
Shipping Height
24.25
Shipping Length
11.25
Shipping Width
12.25
Side Loop
No
Dimension & Venting
Type
Pump Tank
Height
24.25"
Width
12.25"
Shipping Weight
16 lbs
