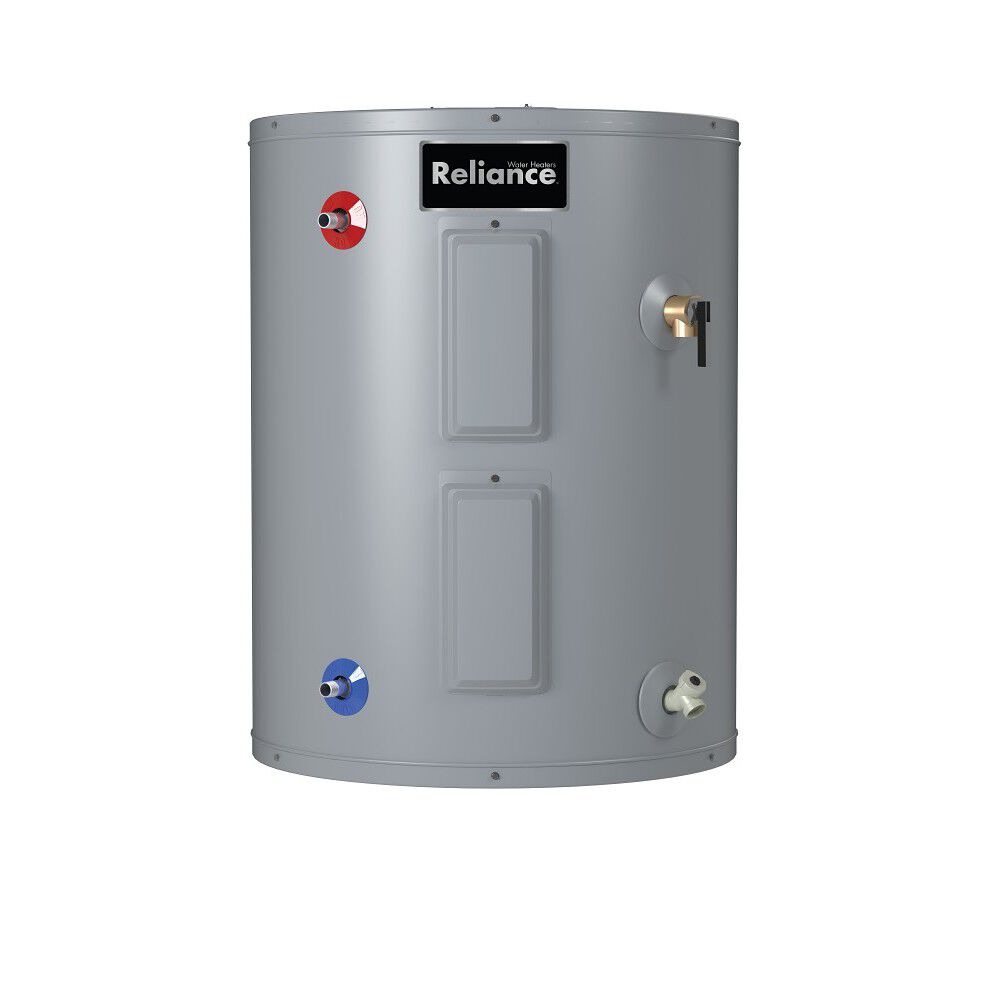

28-Gallon Blanketed Lowboy Side-Connect Electric Water Heater - 6 Year Warranty

Model 6-30-EOMBS 100
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Delivers a first hour rating of 47 gallons with Uniform Energy Factor of 0.90
  • Inlet/outlet connections on side for tight installation spaces—optional top connection points

    • 28-Gallon Blanketed Lowboy Side-Connect Electric Water Heater - 6 Year Warranty
    Model 6-30-EOMBS 100
    Find a Local Retailer
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Delivers a first hour rating of 47 gallons with Uniform Energy Factor of 0.90
    • Inlet/outlet connections on side for tight installation spaces—optional top connection points
    • PEX dip tube helps reduce sediment build-up and maintain efficiency
    • Glass-lined tank with anode rod protects against corrosion
    • Factory-Installed temperature and pressure (T&P) relief valve
    • Ideal for under-counter or crawl space installation
    • Shipped with Factory Insulation Blanket

      • The 6-30-EOMBS 28-Gallon 1650-Watt 120V* Blanketed Compact Electric Water Heater is ideal for under-counter or crawl space installation. This model delivers reliable and efficient hot water.

      *May be configured as 4500-Watt 240V

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    28 Gallons
    Rated Storage Volume
    26 Gallons
    UEF
    0.9
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    47 Gallons
    ASME Certified
    No
    Blanket Included
    Yes
    Destination Country
    US
    Height to T&P
    21.75
    Installation Type
    INDOOR
    Max Wattage
    1,650
    Number of Elements
    1
    Application
    RESIDENTIAL
    Shipping Height
    34.56
    Shipping Length
    26
    Shipping Width
    23
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    30"
    Diameter
    22 in."
    Width
    22"
    Shipping Weight
    95 lbs
