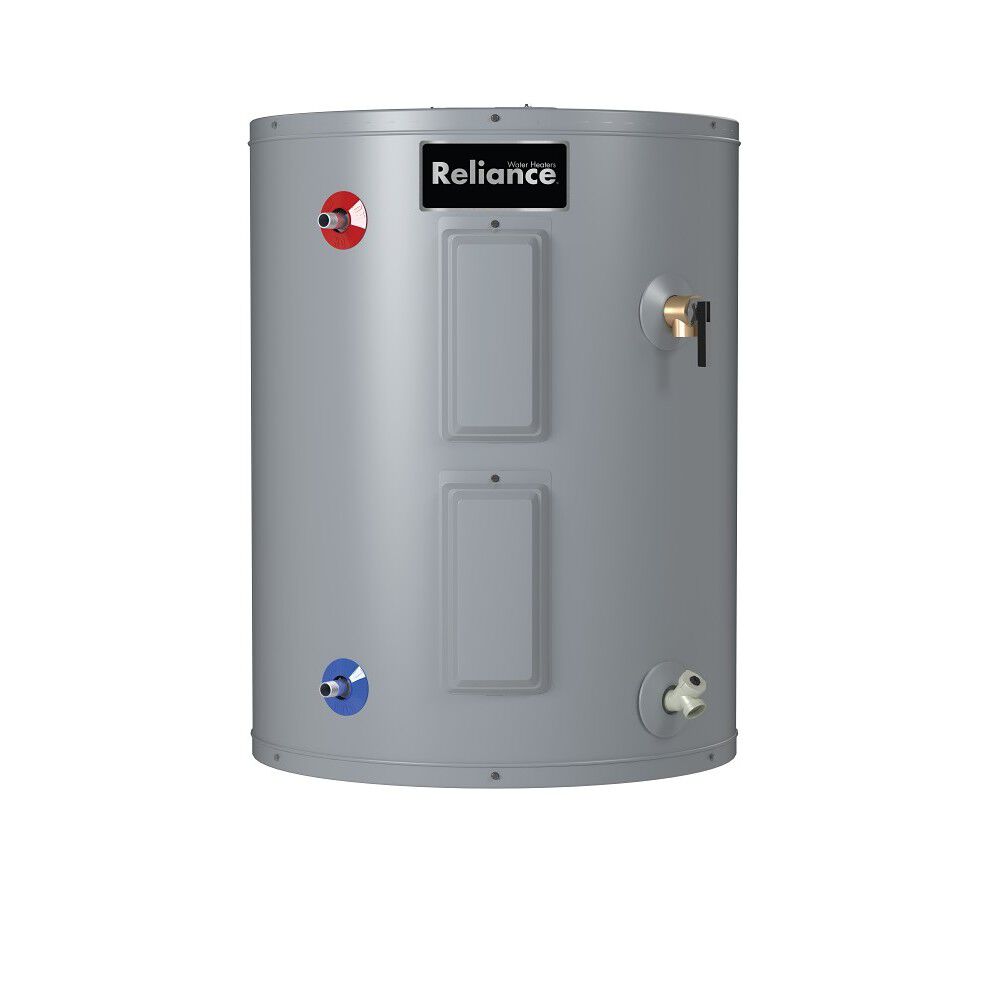

38-Gallon Lowboy Side-Connect Electric Water Heater - 6 Year Warranty

Model 6-40-EOMS 100
Capacity (Gallons)
First Hour Rating
Blanket
Limited Tank Warranty

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Dual 4,500-watt heating elements deliver a first hour rating of 54 gallons with Uniform Energy Factor of 0.93
  • Compliant with HUD standards for mobile homes/manufactured housing

    • 38-Gallon Lowboy Side-Connect Electric Water Heater - 6 Year Warranty
    Model 6-40-EOMS 100
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Dual 4,500-watt heating elements deliver a first hour rating of 54 gallons with Uniform Energy Factor of 0.93
    • Compliant with HUD standards for mobile homes/manufactured housing
    • PEX dip tube helps reduce sediment build-up and maintain efficiency
    • Glass-lined tank with anode rod protects against corrosion
    • Factory-Installed temperature and pressure (T&P) relief valve

      • The 6-40-EOMS 38-Gallon Lowboy Side-Connect Electric Water Heater is ideal for installations with limited space. This model features dual 4,500-watt commercial-grade heating elements to deliver reliable and efficient hot water.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    38 Gallons
    Rated Storage Volume
    35 Gallons
    UEF
    0.93
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    54 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    24.00
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    37
    Shipping Length
    30.25
    Shipping Width
    27.13
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    33.5"
    Diameter
    26 in."
    Width
    26"
    Shipping Weight
    118 lbs
