Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 35,500 BTU input for faster recovery
- 59-gallon first hour rating
- Meets HUD requirements for manufactured housing
- Piezo igniter allows for easy one-hand pilot ignition without matches
- Side inlet and top outlet water connection
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-Friendly Non-CFC foam insulation
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve

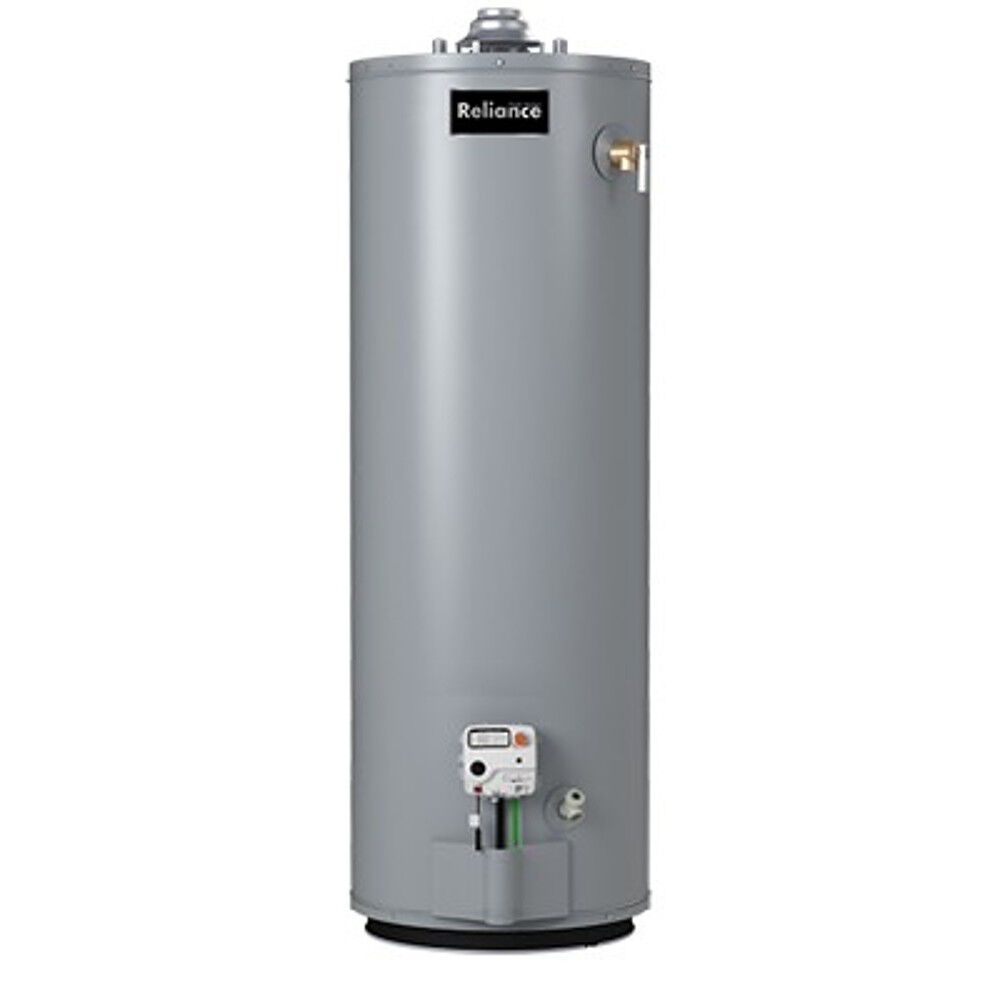

The 6-40-NOMT 40-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater is convertible for Liquid Propane and meets HUD requirements for manufactured housing/mobile home installation.*
The 35,500 BTU gas burner delivers a first hour rating of 59 gallons. An Eco-Friendly Green Choice® gas burner reduces NOx emissions by 33%.
*Not for use in inside closets where a direct vent design is required
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.58
Maximum BTUs
35,500
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
BOTH
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
59 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
51.75
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Mobile Home Compatible
Yes
Application
RESIDENTIAL
Shipping Height
61.5
Shipping Length
26
Shipping Width
23
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
58.25"
Diameter
20 in."
Shipping Weight
140 lbs
Vent Type
Atmospheric Vent
Height to Gas Valve
13.25"
