Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33% over standard burners
- Piezo igniter allows for easy one-hand pilot ignition without matches
- PEX dip tube reduces lime and sediment buildup and maximizes hot water output
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-Friendly Non-CFC foam insulation
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- Meets HUD requirements for manufactured housing
- Side taps for easy installation

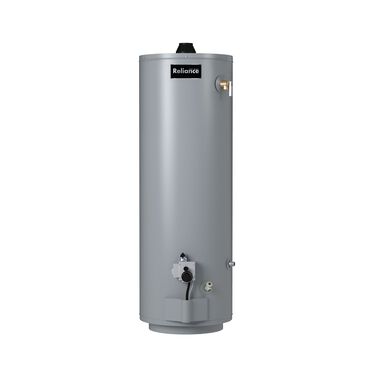

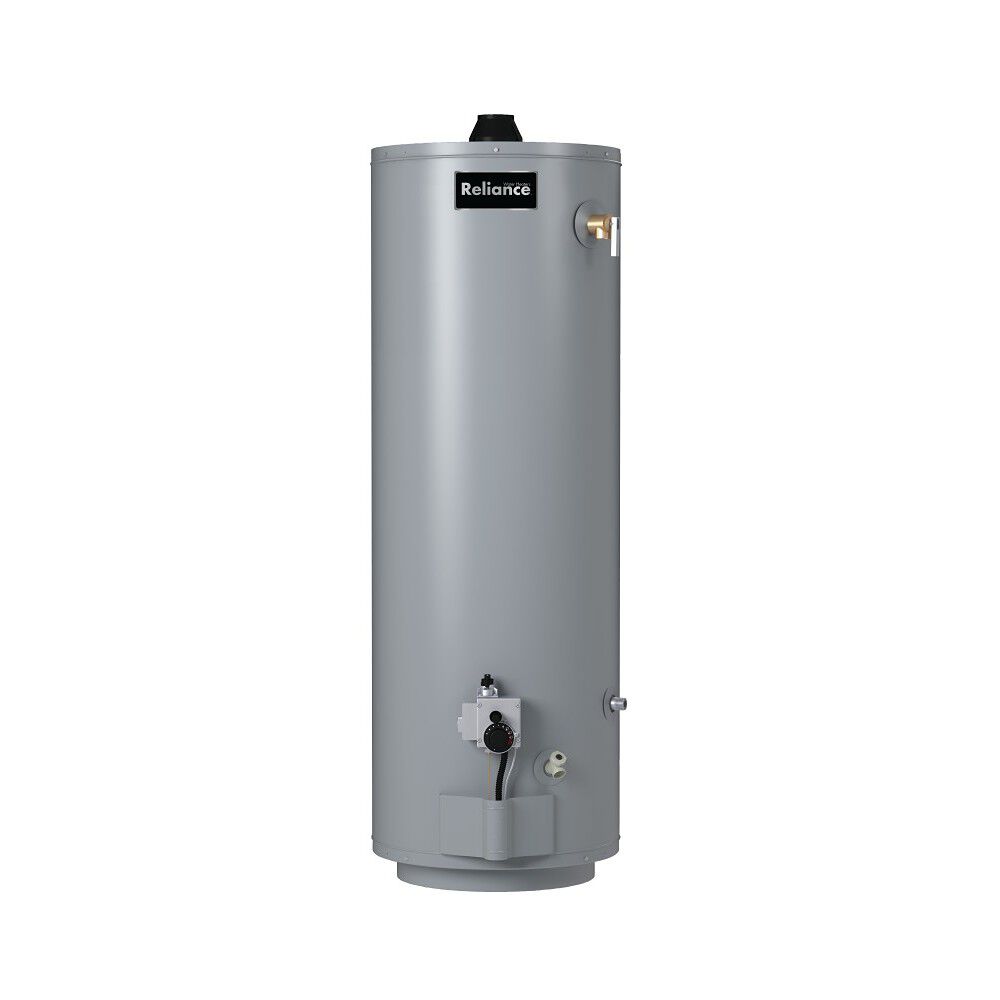

The 6-30-MDV 30-Gallon Mobile Home Direct Vent Natural Gas Water Heater is convertible for Liquid Propane and meets HUD requirements for manufactured housing/mobile home installation.*
The 30,000 BTU gas burner delivers a first hour rating of 60 gallons. An Eco-Friendly Green Choice® gas burner reduces NOx emissions by 33%.
*Not for use in inside closets where a direct vent design is required
Specifications
Tech Specs
Nominal Gallon Capacity
30 Gallons
Rated Storage Volume
29 Gallons
UEF
0.61
Maximum BTUs
30,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
BOTH
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
60 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
52.50
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Mobile Home Compatible
Yes
Application
RESIDENTIAL
Shipping Height
63.75
Shipping Length
24.19
Shipping Width
18.69
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
58.25"
Diameter
18 in."
Shipping Weight
121 lbs
Vent Type
Direct Vent
Height to Gas Valve
13.75"
