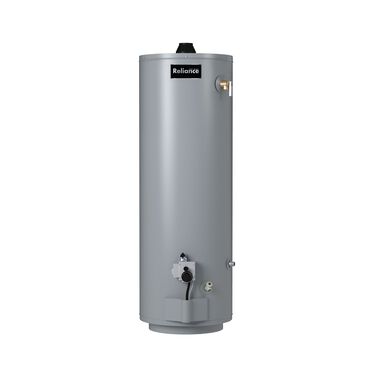

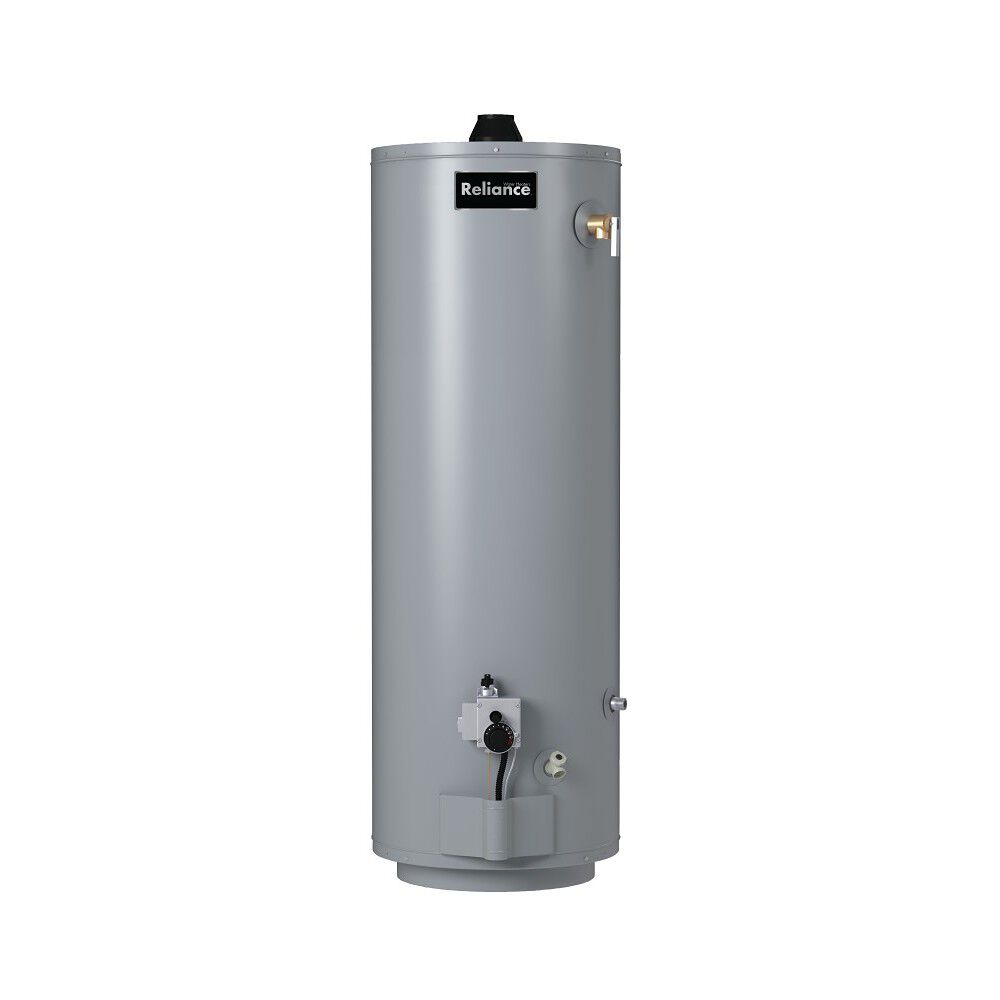

40-Gallon Mobile Home Direct Vent Natural Gas/Propane Water Heater - 6 Year Warranty

Model 6-40-MDV 250
Capacity (Gallons)

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33% over standard burners
  • Piezo igniter allows for easy one-hand pilot ignition without matches
  • 40-Gallon Mobile Home Direct Vent Natural Gas/Propane Water Heater - 6 Year Warranty
    Model 6-40-MDV 250
    What to Expect from this Model
    modal-clock
    21.1 minutes
    single shower length
    modal-frame
    2.6 showers
    back-to-back
    modal-frame
    2.2 showers
    at the same time
    modal-tank-capacity
    55 gallons
    max tub size
    modal-cost
    $301/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33% over standard burners
    • Piezo igniter allows for easy one-hand pilot ignition without matches
    • PEX dip tube reduces lime and sediment buildup and maximizes hot water output
    • Glass-lined tank with anode rod protects against corrosion
    • Environmentally-Friendly Non-CFC foam insulation
    • Factory-installed PEX polymer lined heat trap nipples
    • Factory-installed temperature & pressure (T&P) relief valve
    • Meets HUD requirements for manufactured housing
    • Side taps for easy installation

    • The 6-40-MDV 40-Gallon Mobile Home Direct Vent Natural Gas Water Heater is convertible for Liquid Propane and meets HUD requirements for manufactured housing/mobile home installation.*

      The 32,000 BTU gas burner delivers a first hour rating of 57 gallons. An Eco-Friendly Green Choice® gas burner reduces NOx emissions by 33%.

      *Not for use in inside closets where a direct vent design is required

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.59
    Maximum BTUs
    32,000
    Power Source
    GAS
    Limited Tank Warranty
    8 Years
    Limited Parts Warranty
    8 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    57 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Height to T&P
    52.25
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Mobile Home Compatible
    Yes
    Application
    RESIDENTIAL
    Shipping Height
    64.19
    Shipping Length
    26.19
    Shipping Width
    20.69
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    58.75"
    Diameter
    20 in."
    Shipping Weight
    135 lbs
    Vent Type
    Direct Vent
    Height to Gas Valve
    13.75"
