Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 50,000 BTU input for faster recovery
- 97-gallon First Hour rating
- Electronic gas control valve provides precise temperature control and operational status
- Sidewall venting up to 180 feet
- Vents using inexpensive schedule 40 PVC, CPVC, or ABS pipe
- More powerful modular blower with 110/120 volt electrical system
- Glass-lined tank with heavy duty anode rod protects against corrosion
- Factory-installed PEX polymer lined heat trap nipples
- Includes factory-installed 7-foot power cord

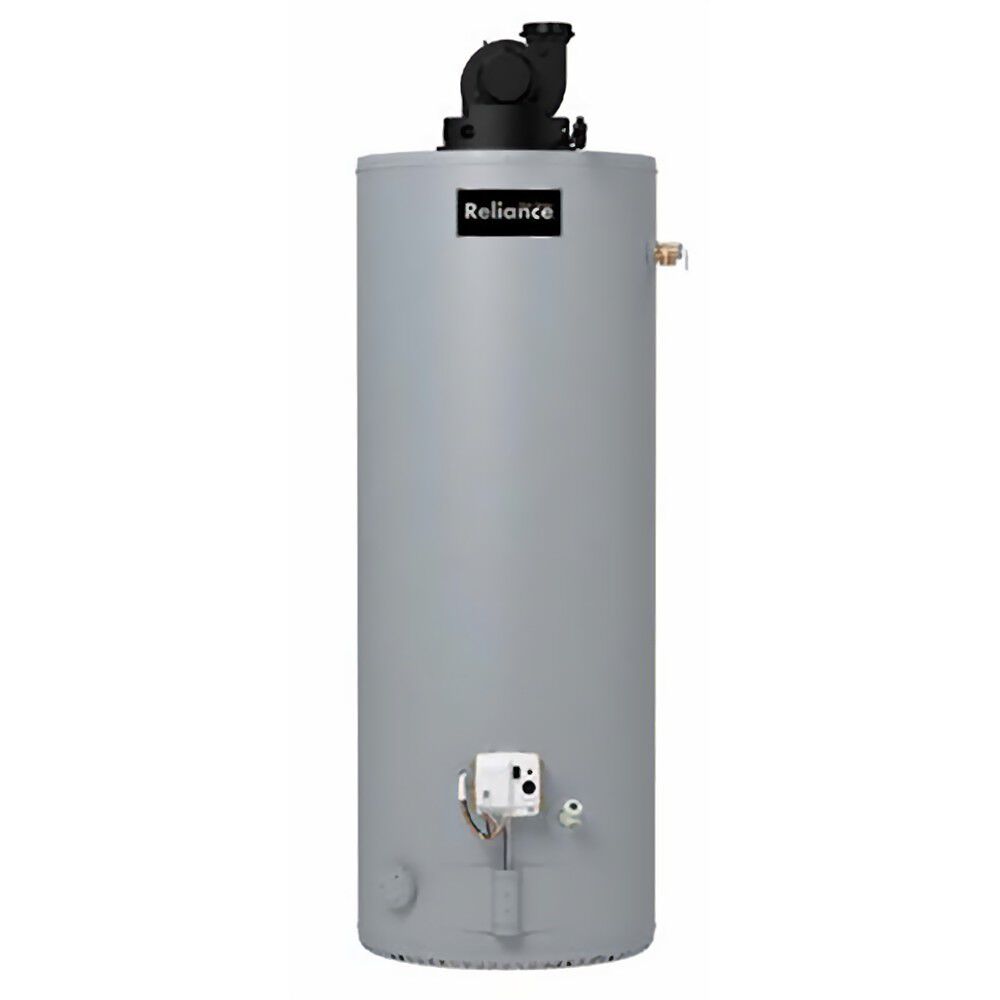

The 6-50-YRVIT 50-Gallon Tall Power Vent Natural Gas Water Heater has an advanced electronic control system with an LCD display for ease of use, precise temperature control and operational status.
Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This model features a 6-year limited warranty and complies with Low-NOx emission requirements.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48 Gallons
UEF
0.72
Maximum BTUs
50,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
1"
Emissions
Low NOx
First Hour Rating
97 Gallons
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
Yes
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
51.75
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
70.5
Shipping Length
31.25
Shipping Width
29.63
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
68.125"
Diameter
22 in."
Shipping Weight
192 lbs
Vent Type
Power Vent
Height to Gas Valve
12"
