Product Details
- 6-year limited tank & parts warranty, 1-year labor warranty
- 76,000 BTU input for faster recovery
- 116-gallon first hour rating
- Sidewall venting up to 180 feet
- Vents using inexpensive schedule 40 PVC, CPVC, or ABS pipe
- More powerful modular blower with 110/120 volt electrical system
- Factory equipped with side taps for space heating applications where plumbing codes allow
- Advanced electronic controls with electronic ignition
- Eco-Friendly Green Choice® gas burner—reduces NOx emissions by 33%
- Includes factory-installed 7-foot power cord

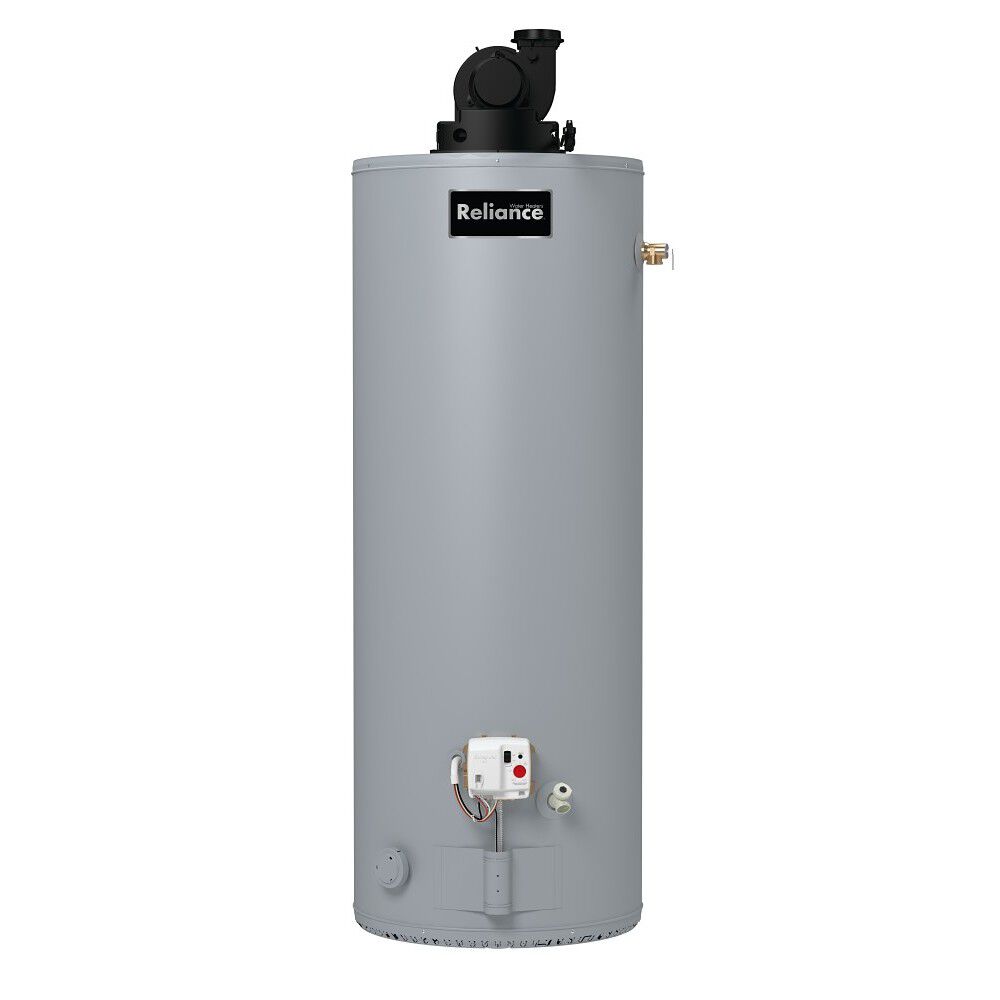

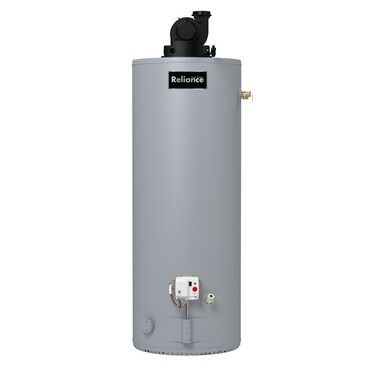

The 6-75-HRVHTL 75-Gallon Power Vent Liquid Propane Water Heater maximizes efficiency and provides flexible installation options by using an exclusive 3-position rotatable blower outlet. A 76,000 BTU propane burner delivers a first-hour rating of 116 gallons.
An eco-friendly burner design reduces NOx emissions by up to 33% and complies with Low NOx emission requirements. All models are equipped with a protected sensor that detects the presence of flammable vapors and automatically disables the burner to prevent ignition.
Specifications
Tech Specs
Nominal Gallon Capacity
75 Gallons
Rated Storage Volume
72 Gallons
UEF
0.69
Thermal Efficiency
82%
Maximum BTUs
76,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
116 Gallons
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
Yes
Flue Diameter
5.00
Fuel Source
PROPANE
Height to T&P
53.25
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
72.25
Shipping Length
35.2
Shipping Width
27.38
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Height
61.25"
Diameter
26 in."
Shipping Weight
277 lbs
Vent Type
Power Vent
Height to Gas Valve
13.75"
