Energy Star
Anti-Leak
ResidentialNAECA4 Compliant

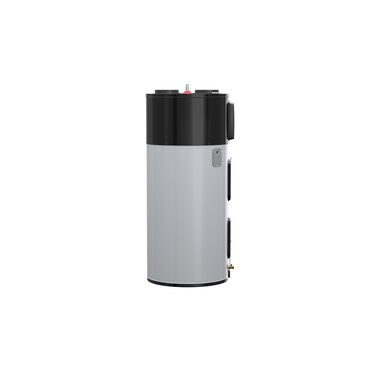

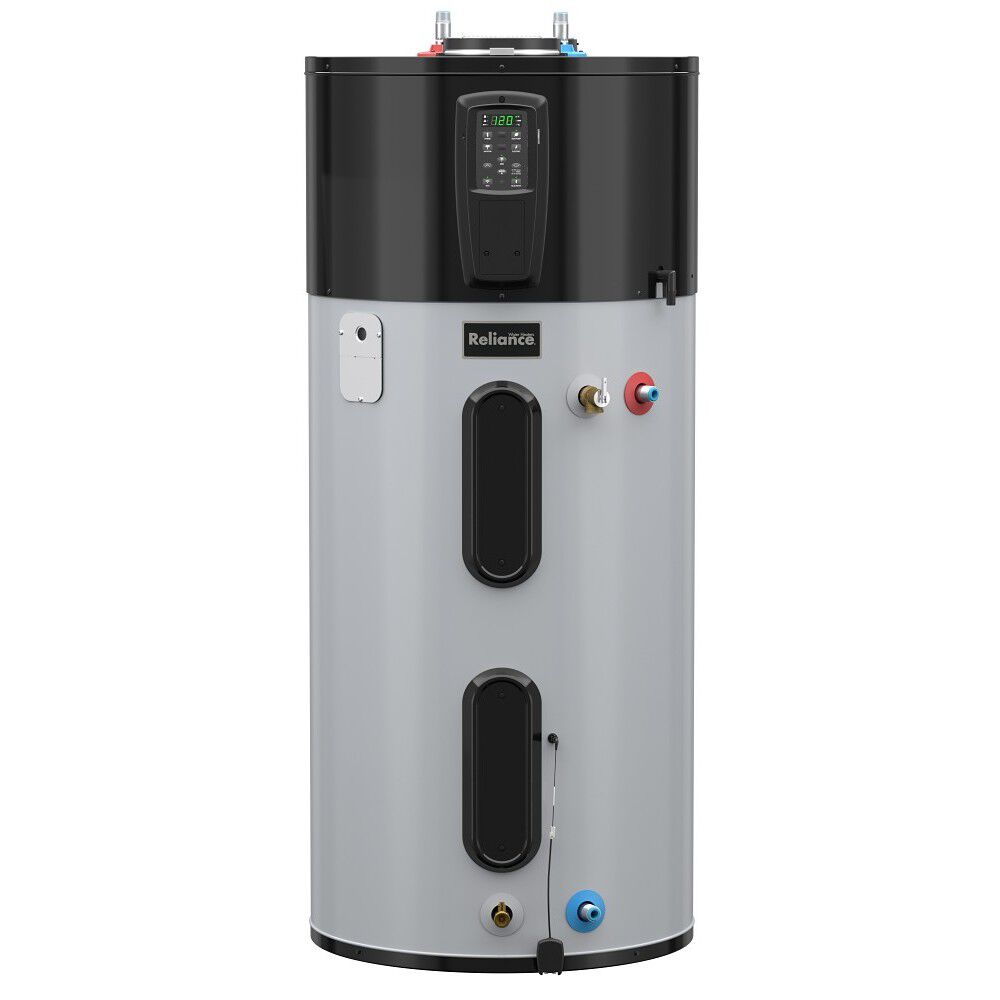

66-Gallon Smart Electric Heat Pump Water Heater - 10 Year Warranty

Model 10-66-DHPTS 200
Capacity (Gallons)

  • ENERGY STAR® certified with a UEF of 3.7
  • 10-year limited tank & parts warranty, 1-year labor warranty
  • Save up to $305 per year on utility bills*

    • 66-Gallon Smart Electric Heat Pump Water Heater - 10 Year Warranty
    Model 10-66-DHPTS 200
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    35.9 minutes
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    4.5 showers
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    4.4 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    113 gallons
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $130/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • ENERGY STAR® certified with a UEF of 3.7
    • 10-year limited tank & parts warranty, 1-year labor warranty
    • Save up to $305 per year on utility bills*
    • 82-gallon First Hour Recovery rating for maximum hot water delivery

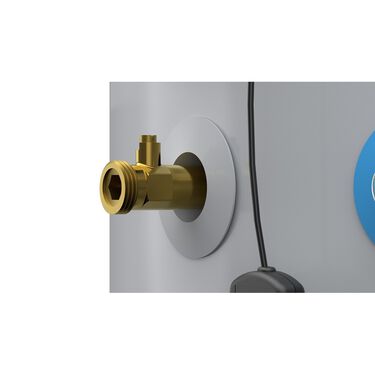

    • Smart Anti-Leak Technology—Automatically closes the valve on the incoming cold water inlet when a leak is detected to block the cold water supply and reduce property damage
    • Whisper-Quiet—Only 45 dBA while operating
    • Side & top water connections and built-in duct adapters for ease of installation—zero clearance required
    • Rated for 208 and 240 Volt power supply
    • Environmentally-Friendly non-CFC foam insulation

      • Save money on utility bills* and enjoy peace of mind— smart technology immediately alerts you of a leak, and an optional Automatic Water Shut Off Valve automatically shuts off the water supply when a leak is detected (purchased separately).

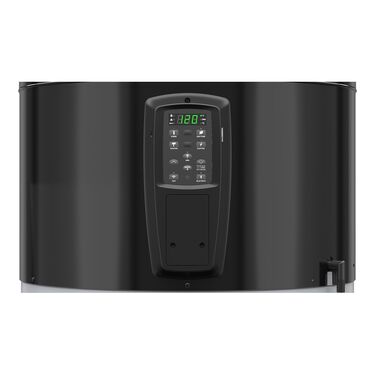

      An advanced electronic control system provides large LCD display for ease of use, precise temperature control and operational status. iCOMM™ WiFi Connectivity lets you manage your water heater from your smartphone.

      Choose from four operating modes for optimal performance based on your household needs:

      Heat Pump – Maximum energy efficiency
      Hybrid – Balances hot water delivery with energy-saving performance
      Electric – Uses only the electric heating elements
      Vacation – Reduce energy use while you are away

      *Comparing 66-gallon heat pump against pre-2015 similarly-sized standard electric using DOE EF to UEF conversion rates. Savings may vary.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    66 Gallons
    Rated Storage Volume
    67 Gallons
    UEF
    3.7
    Power Source
    ELECTRIC
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    SIDE
    Water Connection Size
    0.75"
    First Hour Rating
    82 Gallons
    ASME Certified
    No
    NEEA Certified
    Yes
    Amperes
    23.6
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Height to T&P
    38.50
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    70
    Shipping Length
    32
    Shipping Width
    28.25
    Side Loop
    No
    Voltage
    208 - 240
    Dimension & Venting
    Type
    Water Heater
    Diameter
    26.5 in."
    Shipping Weight
    289 lbs
