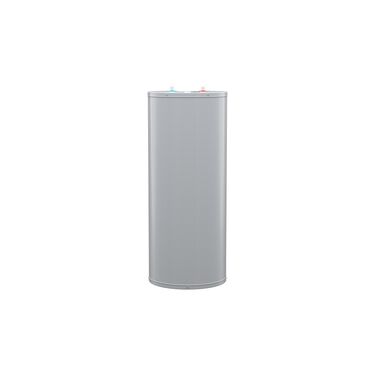

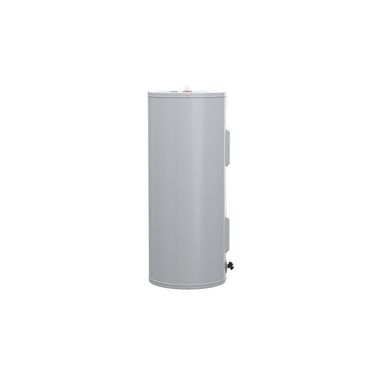

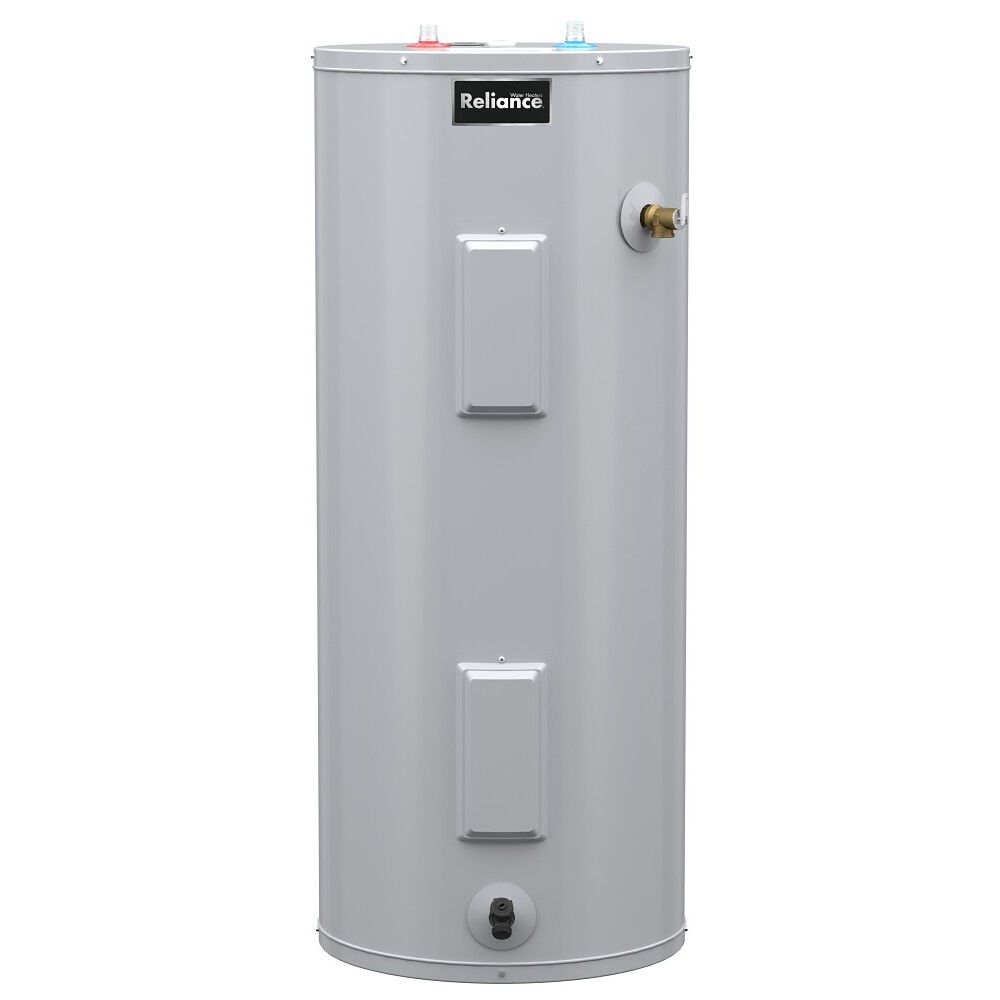

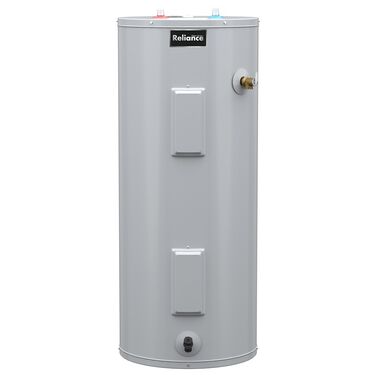

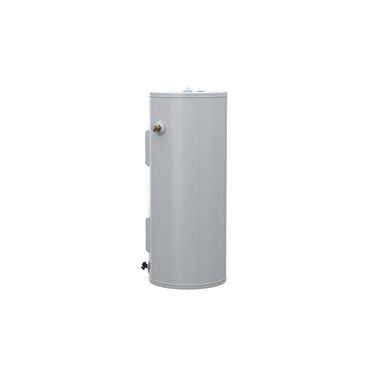

50-Gallon Short Electric Water Heater - 6 Year Warranty

Model 6-50-EORS 110
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Dual 4500-watt elements deliver a first hour rating of 57 gallons and a Uniform Energy Factor of 0.92

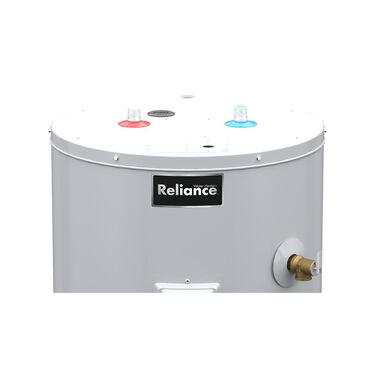

  • Factory-installed PEX polymer lined heat trap nipples

    • 50-Gallon Short Electric Water Heater - 6 Year Warranty
    Model 6-50-EORS 110
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Dual 4500-watt elements deliver a first hour rating of 57 gallons and a Uniform Energy Factor of 0.92
    • Factory-installed PEX polymer lined heat trap nipples
    • PEX dip tube helps reduce sediment build-up and maintain efficiency

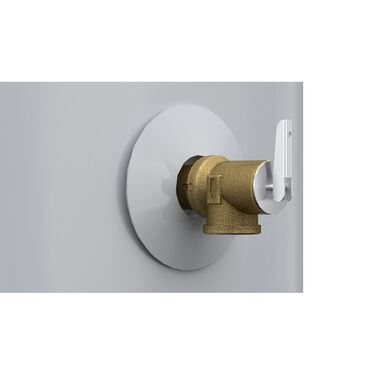

    • Factory-Installed temperature and pressure (T&P) relief valve
    • Compliant with HUD standards for mobile homes/manufactured housing
    • Glass-lined tank with anode rod protects against corrosion

      • The 6-50-EORS 50-Gallon Short Electric Water Heater features dual 4500-watt elements for faster recovery and reliable operation. PEX polymer lined heat trap nipples and a PEX dip tube help improve efficiency.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    57 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.5
    Shipping Length
    26.25
    Shipping Width
    24
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    49.25"
    Diameter
    23 in."
    Shipping Weight
    120 lbs
