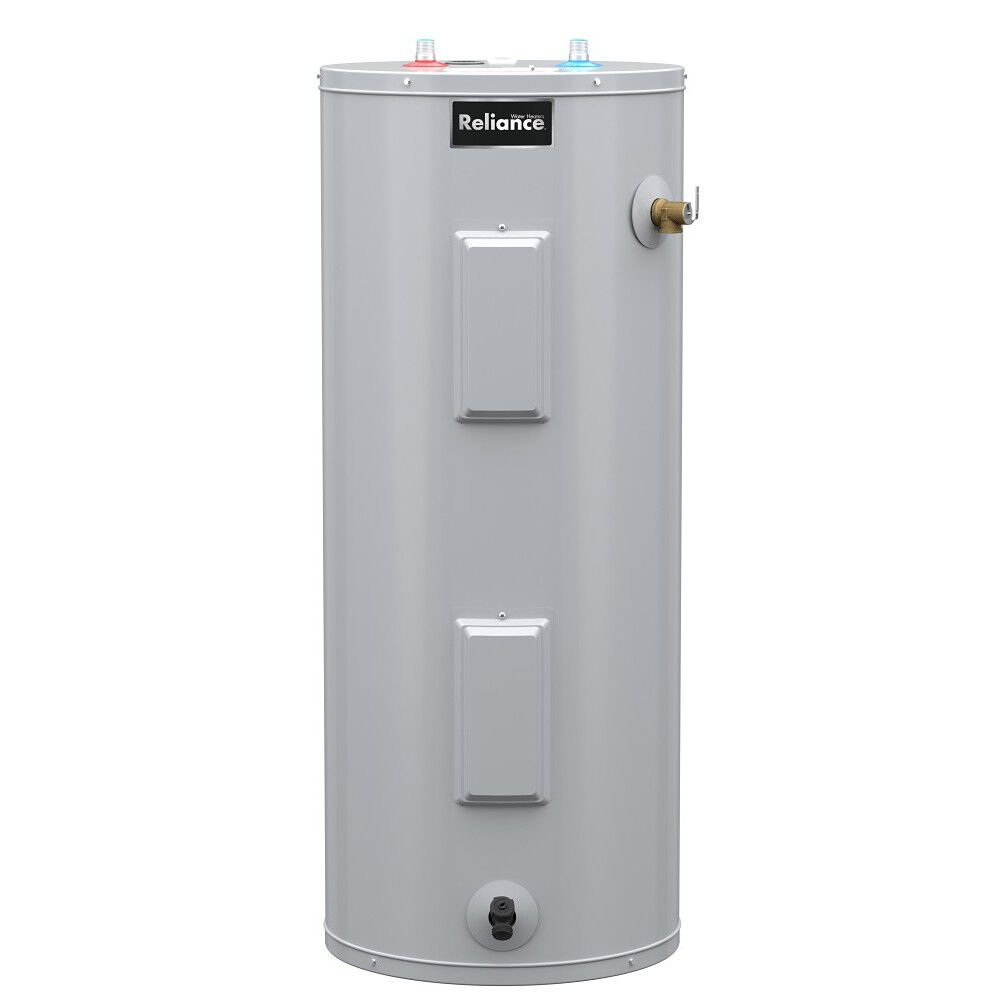

50-Gallon Tall Electric Water Heater - 6 Year Warranty 130

Model 6-50-EORT 130
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Blanket
First Hour Rating

  • 6-year limited tank & parts warranty, 1-year labor warranty
  • Dual 4500-watt elements deliver a first hour rating of 62 gallons and a Uniform Energy Factor of 0.92
  • Factory-installed PEX polymer lined heat trap nipples

    • 50-Gallon Tall Electric Water Heater - 6 Year Warranty 130
    Model 6-50-EORT 130
    Buy at
    Find a Local Retailer
    Buy at
    Find a Local Retailer
    Product Details
    • 6-year limited tank & parts warranty, 1-year labor warranty
    • Dual 4500-watt elements deliver a first hour rating of 62 gallons and a Uniform Energy Factor of 0.92
    • Factory-installed PEX polymer lined heat trap nipples
    • PEX dip tube helps reduce sediment build-up and maintain efficiency

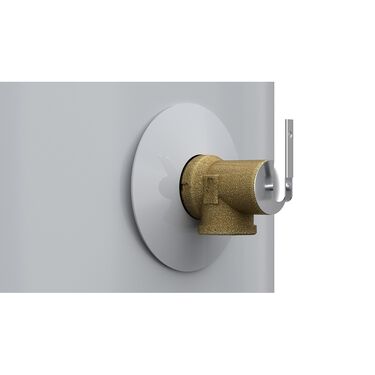

    • Factory-Installed temperature and pressure (T&P) relief valve
    • Compliant with HUD standards for mobile homes/manufactured housing
    • Glass-lined tank with anode rod protects against corrosion

      • The 6-50-EORT 50-Gallon Tall Electric Water Heater features dual 4500-watt elements for faster recovery and reliable operation. PEX polymer lined heat trap nipples and a PEX dip tube help improve efficiency.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    46 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    62 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    51.25
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    62
    Shipping Length
    23.75
    Shipping Width
    21.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    59"
    Diameter
    20.5 in."
    Width
    20.5"
    Shipping Weight
    120 lbs
    Maintenance & Troubleshooting Videos
    Maintenance

    Electric - Adjusting the Thermostat

    Electric - Checking and Replacing Lower Heating Element

    Electric - Checking and Replacing Upper Heating Element

    Electric - Not Enough Hot Water

    Electric - Replacing the Lower Thermostat

    Electric - Replacing the Upper Thermostat

    Troubleshooting

    Electric - No Hot Water

    Electric - Tripped ECO

    Marketing Videos
    Electric - Application and Installation
    Electric - Features and Benefits
    Electric - How It Works
