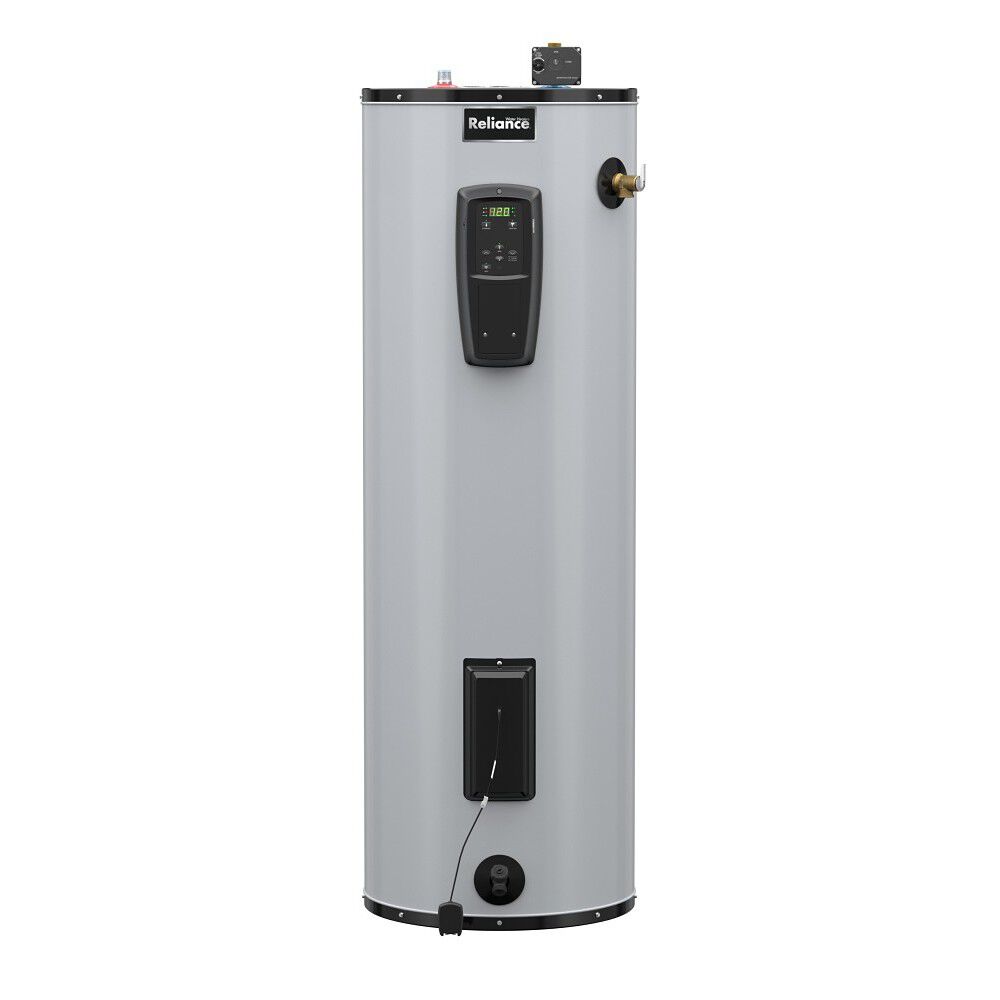

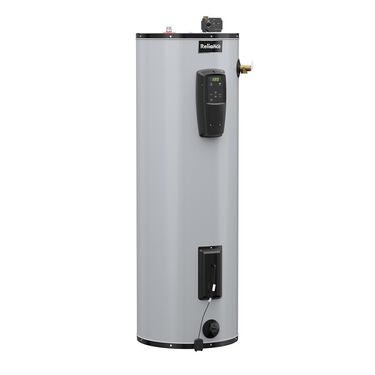

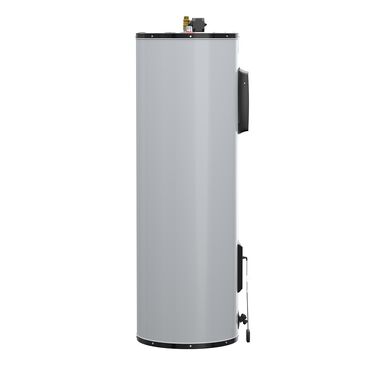

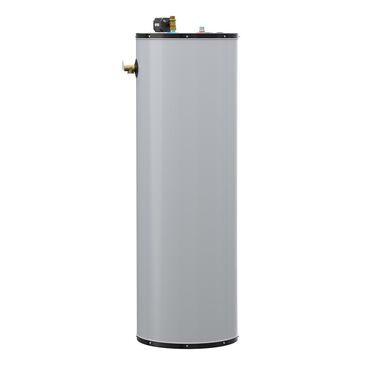

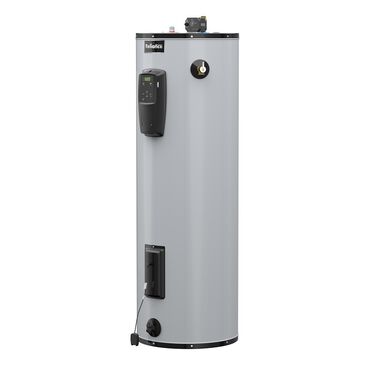

50-Gallon Tall Grid-Capable Smart Electric Water Heater with Leak Detection - 12 Year Warranty

Model 12-50-DAFRT 100
Capacity (Gallons)
Height Classification

  • 12-year limited tank & parts warranty, 1-year labor warranty
  • Leak Detection—Smart technology immediately alerts you of a leak
  • Automatic Water Shut Off Valve—Automatically shuts off water supply when a leak is detected
  • 50-Gallon Tall Grid-Capable Smart Electric Water Heater with Leak Detection - 12 Year Warranty
    Model 12-50-DAFRT 100
    Product Details
    • 12-year limited tank & parts warranty, 1-year labor warranty
    • Leak Detection—Smart technology immediately alerts you of a leak
    • Automatic Water Shut Off Valve—Automatically shuts off water supply when a leak is detected
    • Electronic Thermostat—Superior to conventional electromechanical thermostats by having no moving parts to wear out
    • iCOMM™ WiFi Connectivity - Get notifications and manage your water heater from your smartphone
    • Dry Fire Protection—Will not allow the water heater to be turned on unless the tank is full of water, eliminating accidental damage to the elements
    • Premium Heating Elements—Dual stainless steel elements are more efficient and longer lasting than conventional elements, with higher recovery
    • Advanced Tank Protection—Extends the life of your water heater
    • Factory-installed temperature & pressure (T&P) relief valve
    • Factory-installed durable, tamper-resistant brass drain valve

    • The most energy efficient way to heat water just got better—now with innovative smart valve technology to deliver up to 40% more hot water. Enjoy peace of mind with leak detection alerts and automatic water shutoff protection.

      This model is Utility Grid Capable: equipped with Demand Response (CTA-2045 EcoPortCM) communication port to enable participation in Utility Demand Response programs* (requires module from local utility).

      Easily set temperature, operating mode, and child safety lock with a user-friendly electronic interface. Get notifications and manage your water heater from your smartphone with iCOMM™ WiFi Connectivity.

      *Meets state of Washington and Oregon requirements

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    45 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    74 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    Yes
    Installation Type
    INDOOR
    Max Wattage
    5,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    62
    Shipping Length
    23.75
    Shipping Width
    21.5
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    59"
    Diameter
    20.5 in."
    Shipping Weight
    109 lbs
