Product Details
- ENERGY STAR® certified with a UEF of 0.95
- 15-year limited heat exchanger warranty; 5-year parts warranty; 1-year labor warranty for residential applications
- Ultra-Low NOx emissions
- Integrated recirculation pump - 1/2" pipe - 100'; 3/4" pipe - 500'
- Easy-Link 540P with three other 540H models to increase flow capacity
- Common vent up to 8 units
- Primary heat exchanger is constructed of a commercial grade copper that is more resilient to erosion.
- Secondary heat exchanger is made of stainless steel to protect against corrosion.
- Complies with regulations of less than 14 ng/J (<20ppm)
- Safety features include Air-Fuel ratio (AFR) sensor, freeze protection, overheat cut-off fuse, exhaust & water temperature safety control, and troubleshooting diagnostic codes

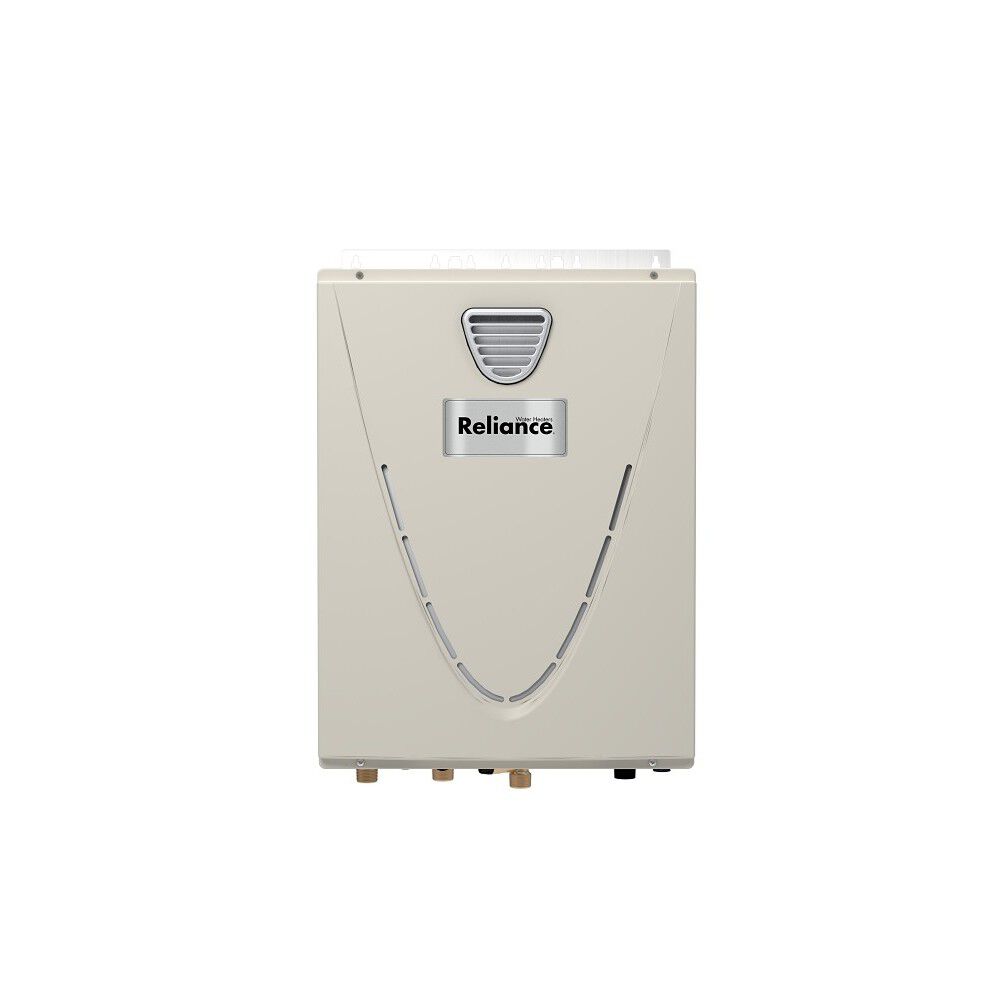

The TS-540P series provides endless and efficient hot water. These models feature an integrated recirculation pump to provide instant hot water in residential applications with dedicated recirculation lines.
The simple user interface allows for temperature and pump controls along with advanced diagnostics to simplify installation and troubleshooting.
Displays:
—On/Off button
—Temperature Setting buttons
—Info and Operation Status
—Quick-Read Water Temperature
Specifications
Tech Specs
UEF
0.95
Maximum BTUs
199,000
Power Source
GAS
Limited Parts Warranty
5 Years
Water Connection Location
BOTTOM
Emissions
Ultra-Low NOx
ASME Certified
No
Destination Country
US
ENERGY STAR® Certified
Yes
Fuel Source
NATURAL
Installation Type
OUTDOOR
Limited Heat Exchanger Warranty
15 Years
Max Flow Rate
5.8 GPM
Minimum BTUs
15,000
Application
RESIDENTIAL
Shipping Height
33.25
Shipping Length
21.75
Shipping Width
15.625
Side Loop
No
Dimension & Venting
Type
Water Heater
Shipping Weight
70 lbs
