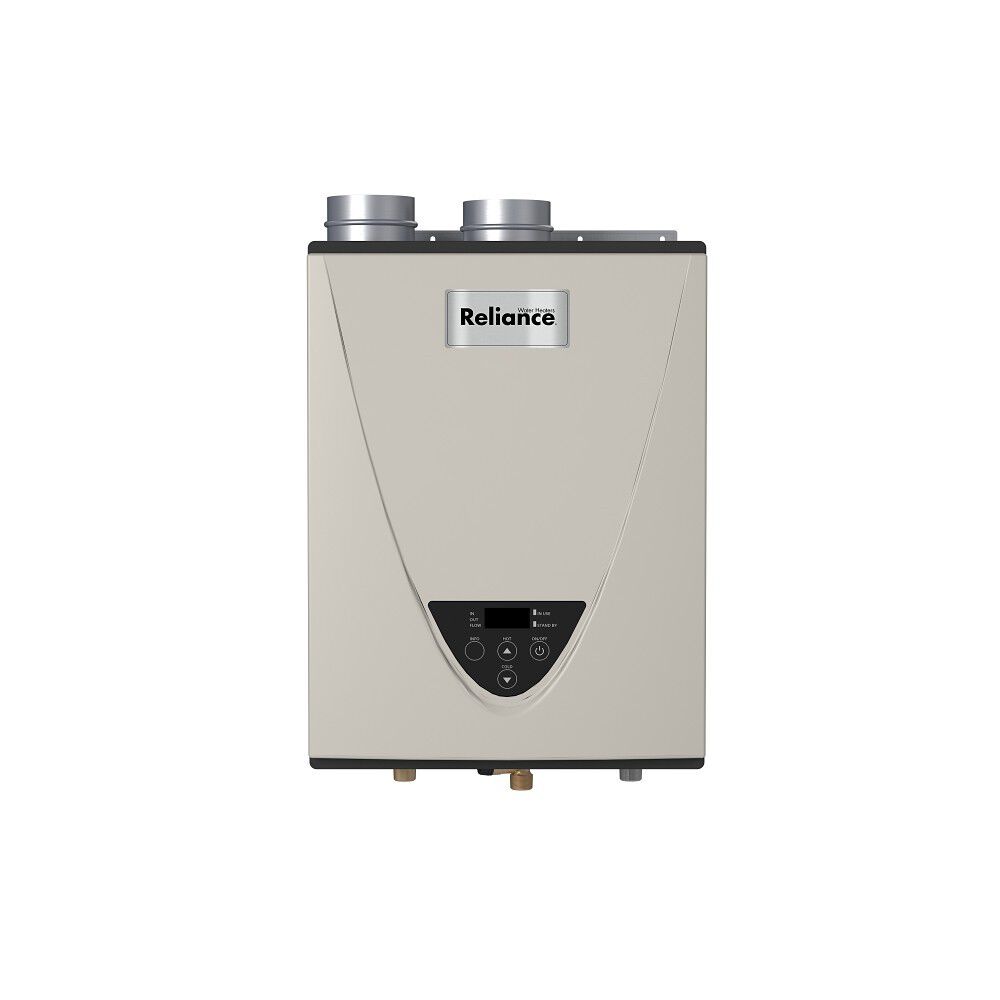

Condensing Ultra-Low NOx Indoor 199,000 BTU Propane Tankless Water Heater with Integrated Recirculation Pump

Model TS-540P-LIH 101
Installation Type
Fuel Source
Maximum BTU's

  • 15-year limited heat exchanger warranty; 5-year parts warranty; 1-year labor warranty for residential applications
  • Safety features include Air-Fuel ratio (AFR) sensor, freeze protection, and an overheat cut-off fuse
  • Integrated recirculation pump - 1/2" pipe - 100'; 3/4" pipe - 500'

    • Condensing Ultra-Low NOx Indoor 199,000 BTU Propane Tankless Water Heater with Integrated Recirculation Pump
    Model TS-540P-LIH 101
    Find a Local Retailer
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    Unlimited
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    Unlimited
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.7 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    Unlimited
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $520/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • 15-year limited heat exchanger warranty; 5-year parts warranty; 1-year labor warranty for residential applications
    • Safety features include Air-Fuel ratio (AFR) sensor, freeze protection, and an overheat cut-off fuse
    • Integrated recirculation pump - 1/2" pipe - 100'; 3/4" pipe - 500'
    • Ultra-Low NOx emissions
    • Easy-Link with up to 3 other units to increase flow capacity
    • Common Vent up to 8 units
    • Secondary heat exchanger is made of stainless steel to protect against corrosion.
    • Complies with SCAQMD 1146.2 regulations of less than 14 ng/J (<20ppm)
    • Simple user interface allows for temperature and pump controls and provides advanced diagnostics

      • The TS-540P series provides endless and efficient hot water. These models feature an integrated recirculation pump to provide instant hot water in residential applications with dedicated recirculation lines.

      The simple user interface allows for temperature and pump controls along with advanced diagnostics to simplify installation and troubleshooting.

      Displays:

      —On/Off button
      —Temperature Setting buttons
      —Info and Operation Status
      —Quick-Read Water Temperature

    Specifications
    Tech Specs
    UEF
    0.93
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    5.8 GPM
    Minimum BTUs
    13,000
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    71 lbs
