Energy Star

Condensing Ultra-Low NOx Outdoor 160,000 BTU Natural Gas Tankless Water Heater

Model TS-240-GEH 100
Installation Type
Fuel Source
Maximum BTU's

  • ENERGY STAR® certified with a UEF of 0.95
  • 15-year limited heat exchanger warranty; 5-year parts warranty; 1-year labor warranty for residential applications
  • Ultra-Low NOx Emissions

    •

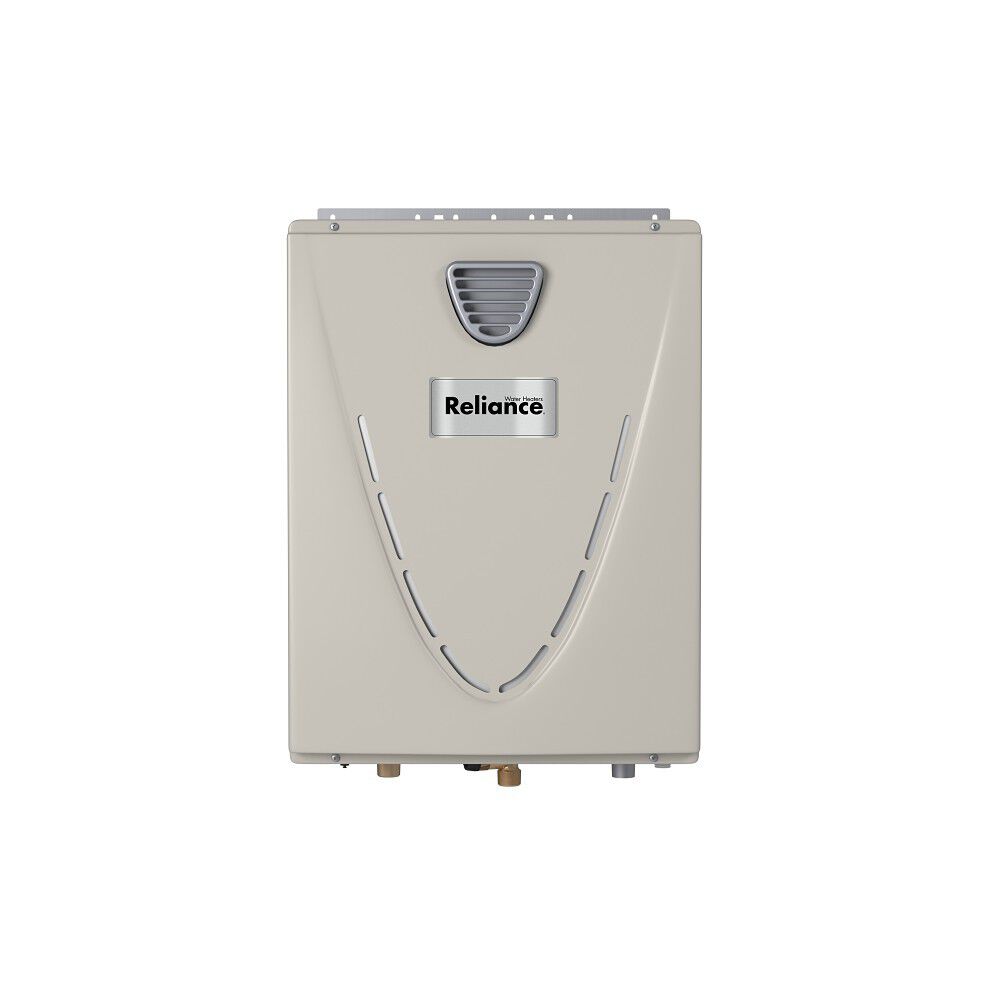

    Condensing Ultra-Low NOx Outdoor 160,000 BTU Natural Gas Tankless Water Heater
    Model TS-240-GEH 100
    Find a Local Retailer
    Find a Local Retailer
    What to Expect from this Model
    modal-clock
    tooltip
    Number of minutes you can enjoy a shower before running out of hot water. Assumes a 2.1 GPM flow rate
    Unlimited
    single shower length
    modal-frame
    tooltip
    Number of back-to-back showers you can take without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    Unlimited
    back-to-back
    modal-frame
    tooltip
    Number of showers you can take at the same time without running out of hot water. Assumes a 2.1 GPM flow rate and an 8 minute shower length
    2.2 showers
    at the same time
    modal-tank-capacity
    tooltip
    Biggest tub this water heater will fill without running out of hot water. Assumes a 5.0 GPM flow rate, and a 67% fill level
    Unlimited
    max tub size
    modal-cost
    tooltip
    The estimated annual cost to operate this water heater in your location
    $196/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    modal-edit
    Edit Location / Advanced Settings
    Product Details
    • ENERGY STAR® certified with a UEF of 0.95
    • 15-year limited heat exchanger warranty; 5-year parts warranty; 1-year labor warranty for residential applications
    • Ultra-Low NOx Emissions
    • Includes internal freeze protection and multiple safety features
    • Primary heat exchanger is constructed of commercial-grade copper
    • Secondary stainless steel heat exchanger
    • Condensing technology provides significant energy cost savings
    • Continuous hot water - 6.6 Gallons Per Minute flow rate
    • Supplied with a remote control

      • The TS-240-GEH 100 Natural Gas Condensing High Efficiency Tankless Water Heater provides efficient and continuous hot water. This model features ultra-low NOx condensing technology and complies with California SCAQMD Rule 1146.2. The primary heat exchanger is made with commercial-grade copper and the secondary with a marine-grade type 316L stainless steel to protect against corrosion.

      This outdoor model features a built-in temperature controller and advanced diagnostics.

      Safety features include an air-fuel ratio (AFR) sensor, exhaust, and water temperature safety control, an overheat cut-off fuse, and internal freeze protection system.

    Specifications
    Tech Specs
    UEF
    0.95
    Maximum BTUs
    160,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    LEED Rating
    1.50
    Destination Country
    US
    Digital Display
    Yes
    ENERGY STAR® Certified
    Yes
    Fuel Source
    NATURAL
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    15 Years
    GPM (@67 F Temp Rise)
    4.7 GPM
    Minimum BTUs
    15,000
    Application
    RESIDENTIAL
    Shipping Height
    33.25
    Shipping Length
    21.75
    Shipping Width
    15.625
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    23.63"
    Width
    17.75"
    Shipping Weight
    69 lbs
    Vent Type
    Power Direct Vent
