Product Details
- ENERGY STAR® certified with a UEF of 0.95
- 15-year warranty on heat exchanger; 5-year limited warranty on parts for residential applications
- Ultra-Low NOx Emissions
- Includes internal freeze protection and multiple safety features
- Primary heat exchanger is constructed of commercial-grade copper
- Secondary stainless steel heat exchanger
- Condensing technology provides significant energy cost savings
- Continuous hot water - 6.6 Gallons Per Minute flow rate
- Supplied with a remote control

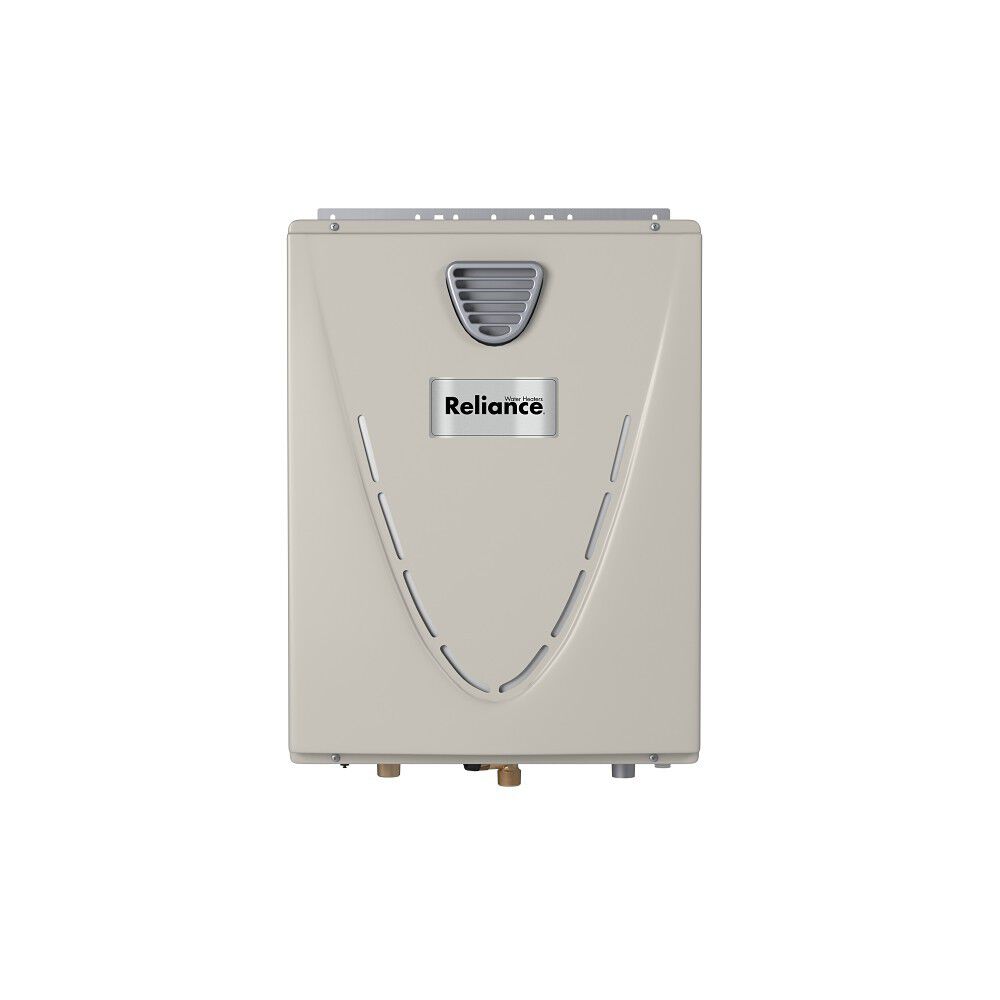

The TS-240-LEH 101 Propane Condensing High Efficiency Tankless Water Heater provides efficient and continuous hot water. This model features ultra-low NOx condensing technology and complies with California SCAQMD Rule 1146.2. The primary heat exchanger is made with commercial-grade copper and the secondary with a marine-grade type 316L stainless steel to protect against corrosion.
This outdoor model features a built-in temperature controller and advanced diagnostics.
Safety features include an air-fuel ratio (AFR) sensor, exhaust, and water temperature safety control, an overheat cut-off fuse, and internal freeze protection system.
Specifications
Tech Specs
UEF
0.95
Maximum BTUs
160,000
Power Source
GAS
Limited Parts Warranty
5 Years
Water Connection Location
BOTTOM
Water Connection Size
0.75"
Emissions
Ultra-Low NOx
ASME Certified
No
LEED Rating
1.50
Destination Country
US
Digital Display
Yes
ENERGY STAR® Certified
Yes
Fuel Source
PROPANE
Installation Type
OUTDOOR
Limited Heat Exchanger Warranty
15 Years
GPM (@67 F Temp Rise)
4.7 GPM
Minimum BTUs
13,000
Application
RESIDENTIAL
Shipping Height
33.25
Shipping Length
21.75
Shipping Width
15.625
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
23.63"
Width
17.75"
Shipping Weight
69 lbs
Vent Type
Power Direct Vent
