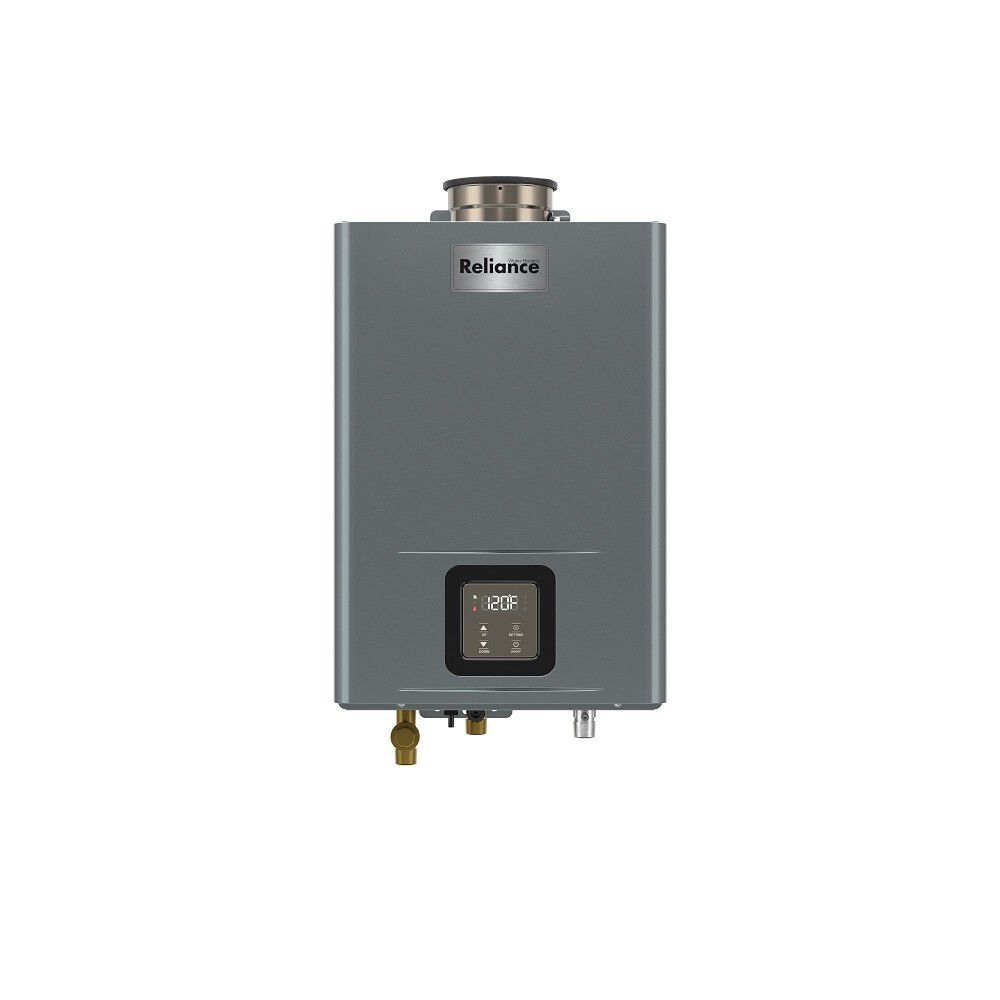

Standard Non-Condensing Ultra-Low NOx 199,000-BTU Indoor Natural Gas Tankless Water Heater

Model RTI-199B-N 100
Installation Type
Fuel Source
Maximum BTU's

  • 199,000 BTU input
  • Max Flow Rate of 10.5 GPM
  • Cascade up to 12 units with one cable per heater (cable included)
  • Standard Non-Condensing Ultra-Low NOx 199,000-BTU Indoor Natural Gas Tankless Water Heater
    Model RTI-199B-N 100
    Product Details
    • 199,000 BTU input
    • Max Flow Rate of 10.5 GPM
    • Cascade up to 12 units with one cable per heater (cable included)
    • Highly Efficient – Uniform Energy Factor (UEF) 0.82
    • 5-year limited warranty on all parts in residential applications
    • Ultra Low NOx – Complies with SCAQMD Rule 1146.2
    • Ease Of Installation – 3/4” Gas Line or larger
    • Certified from Sea Level to 7,800 ft
    • Approved for installation in manufactured homes
    • 12-year limited warranty on heat exchanger in residential applications

    • Reliance non-condensing gas tankless water heaters offer versatile solutions for both indoor and outdoor installations, meeting a wide range of residential needs. These units deliver reliable, on-demand hot water with impressive performance—maximum flow rates up to 10.5 gallons per minute and ultra-low NOx emissions for environmentally conscious operation. With models available for indoor and outdoor use, homeowners can select the ideal configuration for their space, whether it's a compact indoor utility room or an exterior wall. All models feature robust copper heat exchangers, electronic ignition, and freeze protection, ensuring dependable operation in various climates.

      For enhanced durability and reduced maintenance, Reliance tankless water heaters are available with patented X3® Scale Prevention Technology. X3® models require no annual descaling and maintain like-new performance up to three times longer than unprotected units, making them ideal for areas with hard water. Customers can also choose base models without X3® protection, which offer the same high efficiency and performance but require standard flushing maintenance. Each model is backed by industry-leading warranties—15 years for X3® models and 10 years for base models on the heat exchanger—providing peace of mind and long-term value.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    1 Gallons
    Rated Storage Volume
    1 Gallons
    UEF
    0.82
    Maximum BTUs
    199,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    5
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Ignition Type
    Intermittent/Electronic
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    12 Years
    GPM (@67 F Temp Rise)
    5.2 GPM
    Minimum BTUs
    10,000
    Application
    RESIDENTIAL
    Shipping Height
    16.25
    Shipping Length
    34.25
    Shipping Width
    20.63
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    28.5"
    Width
    15.5"
    Shipping Weight
    73 lbs
    Vent Material
    Category III
