Product Details
- 15-year warranty on heat exchanger; 5-year limited warranty on all parts for residential applications
- X3® Scale Prevention Technology
- Complies with Ultra-Low NOx regulations of less than 14 ng/J (<20ppm)
- Field Convertible from natural gas to liquid propane
- Maximum flow rate of 10 GPM at 35°F temperature rise
- Commercial-grade copper heat exchanger
- Safety features include built-in freeze protection, overheat cut-off fuse, and air-fuel ratio (AFR) sensor
- Concentric Vent design
- Includes a power cord

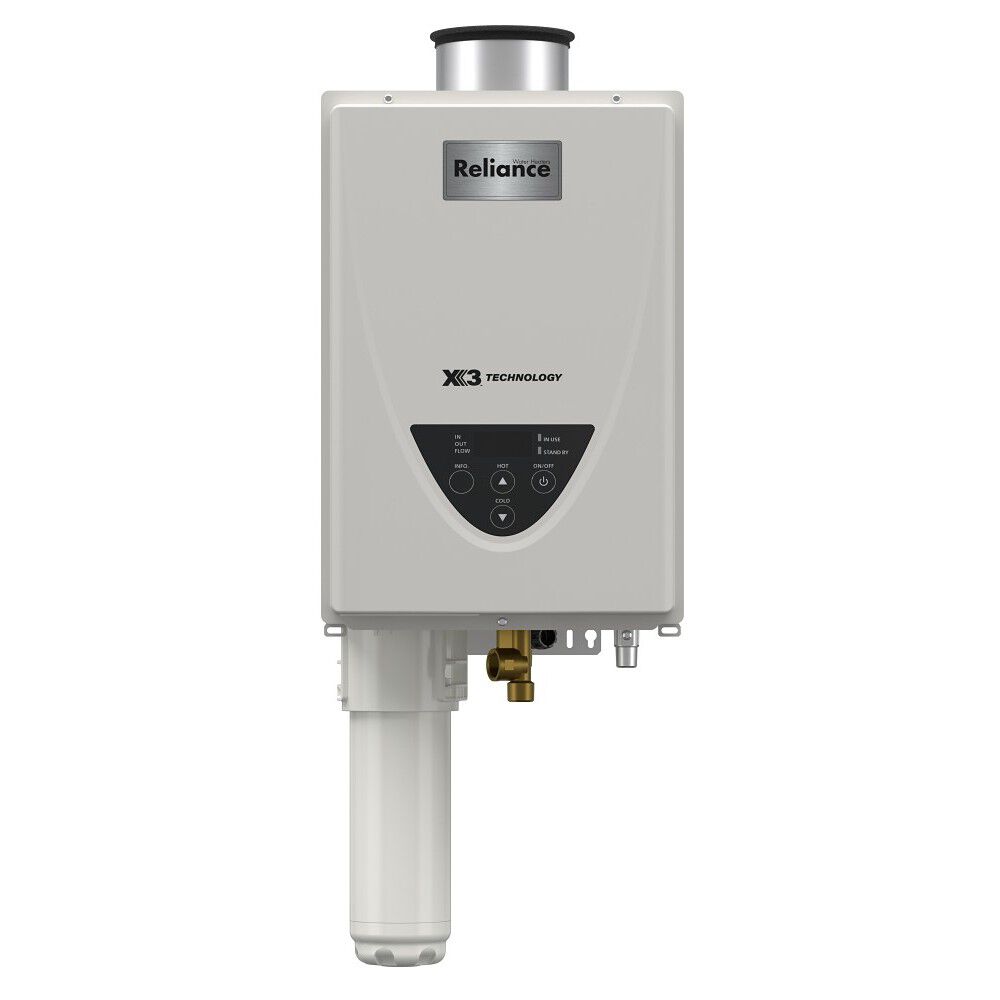

These fully modulating gas tankless water heaters from Reliance® offer sealed combustion and power vented flue supply making them ideal for residential applications.
Built-in X3® Scale Prevention Technology helps maintain like-new performance by protecting the heat exchanger from build-up. Scale-prevention protection can prolong the life of the heat exchanger by up to 300% compared to an unprotected unit.
Safety features include:
—Built-in freeze protection
—Manual reset Hi-limit (up to 194°F)
—Overheat cut-off fuse
—Air-Fuel Ratio (AFR) sensor
—Flame sensor
Specifications
Tech Specs
UEF
0.81
Maximum BTUs
199,000
Power Source
GAS
Limited Parts Warranty
5 Years
Water Connection Location
BOTTOM
Water Connection Size
3/4-in"
Emissions
Ultra-Low NOx
ASME Certified
No
Destination Country
US
Fuel Source
MULTIPLE
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Limited Heat Exchanger Warranty
15 Years
GPM (@67 F Temp Rise)
4.7 GPM
Minimum BTUs
15,000
Application
RESIDENTIAL
Shipping Height
35.5
Shipping Length
18
Shipping Width
15.7
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
36.125"
Width
13.78"
Shipping Weight
62.6 lbs
Vent Type
Concentric Vent
Vent Material
Category III
