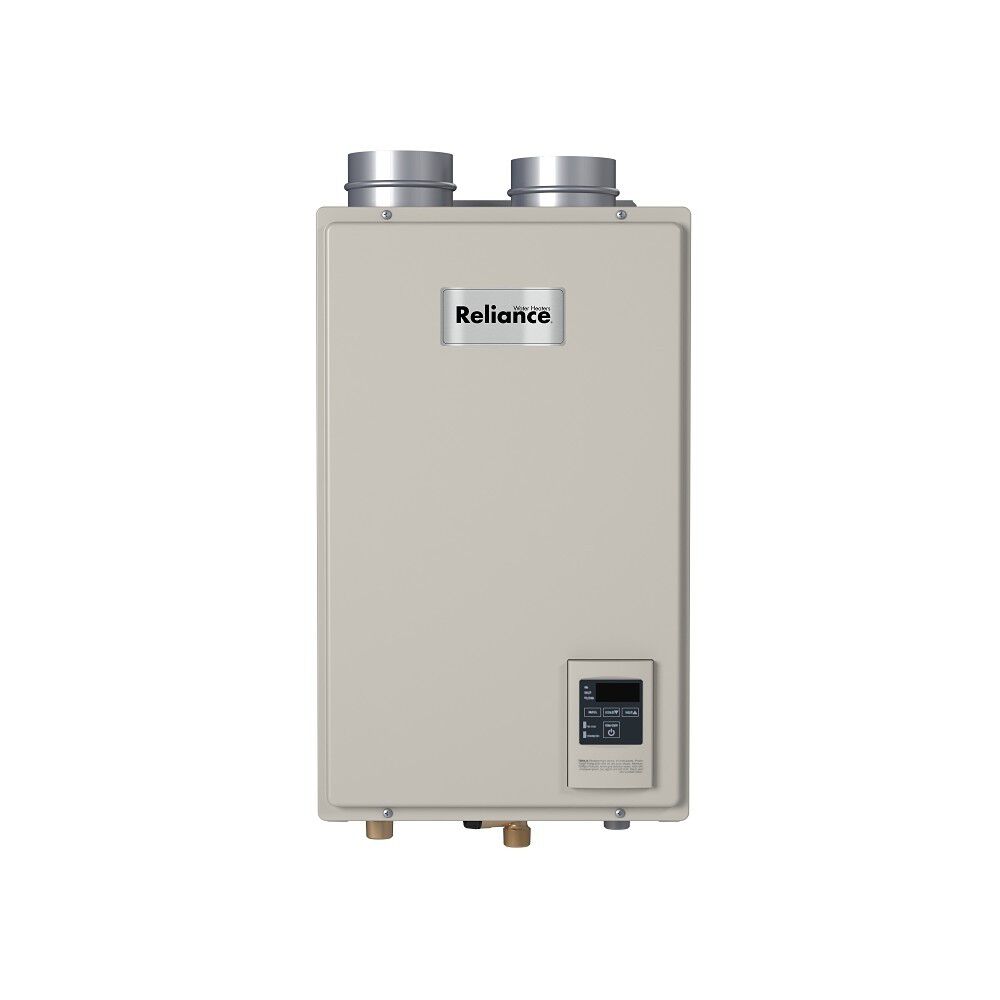

Condensing Ultra-Low NOx Indoor 120,000 BTU Natural Gas Tankless Water Heater

Model TS-140-GIH 100
Installation Type
Fuel Source
Maximum BTU's

  • 15-year warranty on heat exchanger; 5-year limited warranty on all parts for residential applications
  • Ultra-Low NOx Emissions
  • Heat exchanger is constructed of commercial-grade copper
  • Condensing Ultra-Low NOx Indoor 120,000 BTU Natural Gas Tankless Water Heater
    Model TS-140-GIH 100
    What to Expect from this Model
    modal-clock
    Unlimited
    single shower length
    modal-frame
    Unlimited
    back-to-back
    modal-frame
    1.6 showers
    at the same time
    modal-tank-capacity
    Unlimited
    max tub size
    modal-cost
    $210/year
    est. energy cost
    Based on location results for Columbus, OH 43215
    Product Details
    • 15-year warranty on heat exchanger; 5-year limited warranty on all parts for residential applications
    • Ultra-Low NOx Emissions
    • Heat exchanger is constructed of commercial-grade copper
    • Condensing technology provides significant energy cost savings
    • Includes a built-in temperature controller, advanced diagnostics, and a factory-installed power cord
    • 3” PVC Venting up to 70' or 4” PVC Venting up to 100'
    • Flexible venting with PVC, CPVC, or ABS Pipe for Intake and Exhaust (solid core only)
    • Category IV Stainless Steel venting can also be used
    • Factory-installed power cord

    • The TS-140-GIH 101 Natural Gas Condensing High Efficiency Tankless Water Heater provides efficient and continuous hot water. This model features ultra-low NOx condensing technology and complies with California SCAQMD Rule 1146.2. The primary heat exchanger is made with commercial-grade copper and the secondary with a marine-grade type 316L stainless steel to protect against corrosion.

      This indoor model features a built-in temperature controller and advanced diagnostics.

      Safety features include an air-fuel ratio (AFR) sensor, exhaust, and water temperature safety control, an overheat cut-off fuse, and internal freeze protection system.

    Specifications
    Tech Specs
    UEF
    0.9
    Maximum BTUs
    120,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    LEED Rating
    1.50
    Destination Country
    US
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    3.3 GPM
    Minimum BTUs
    15,000
    Application
    RESIDENTIAL
    Shipping Height
    29.5
    Shipping Length
    17.75
    Shipping Width
    13.125
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    22.87"
    Width
    13.87"
    Shipping Weight
    53 lbs
    Vent Type
    Power Direct Vent
